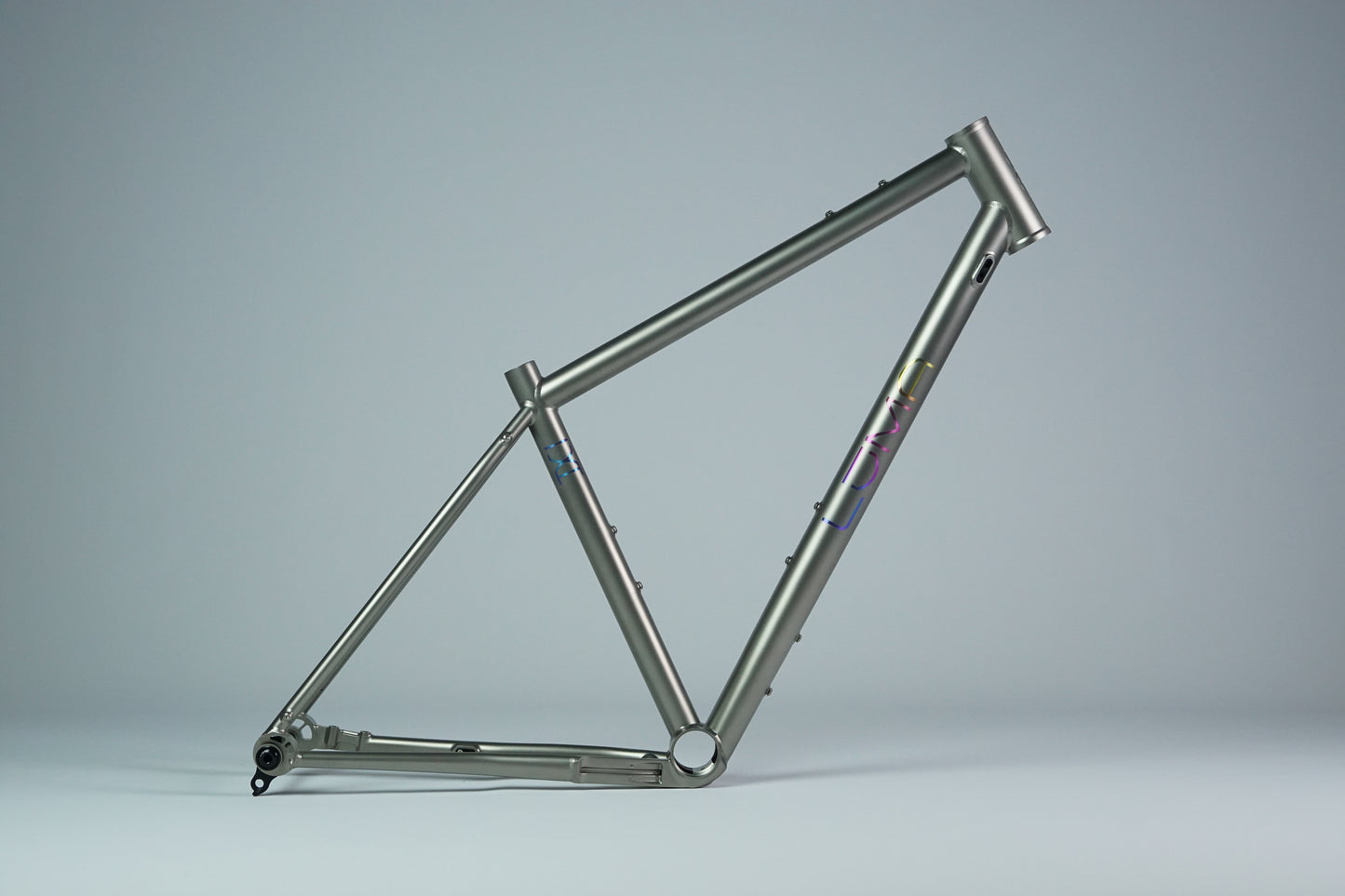

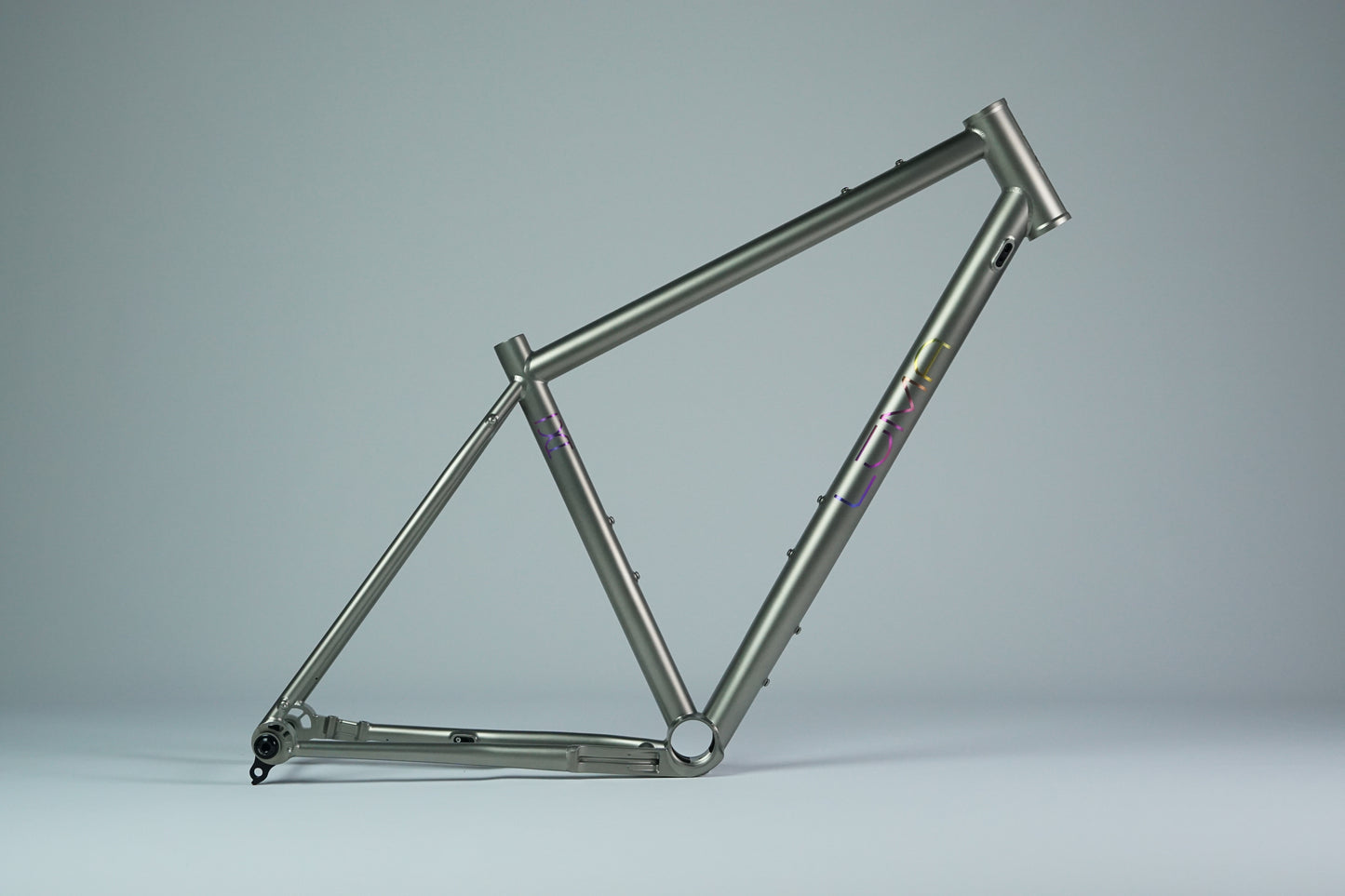

• luma starparty profile sm titanium gravel bike ti bike

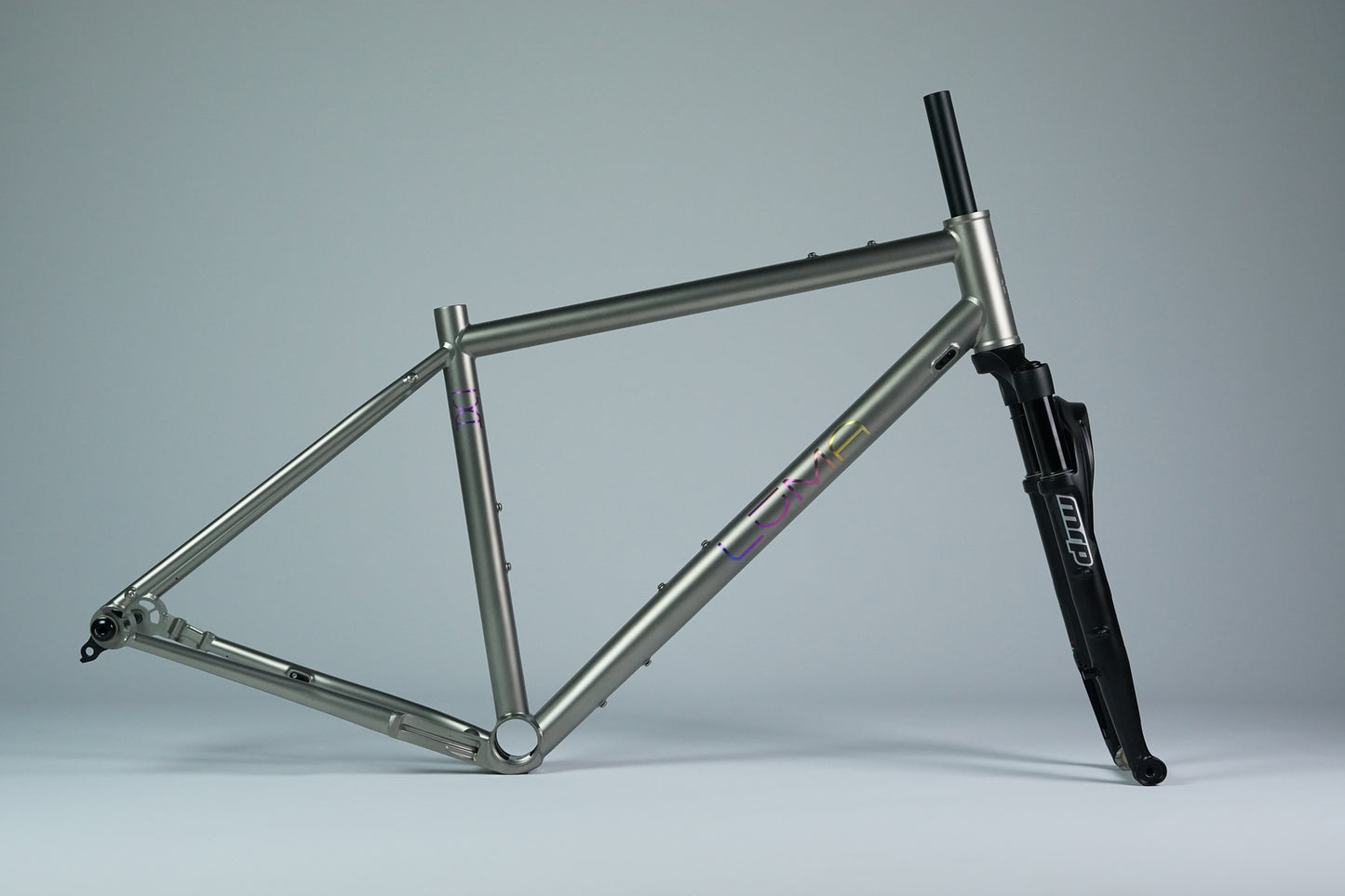

  • Luma Starparty with fork medium

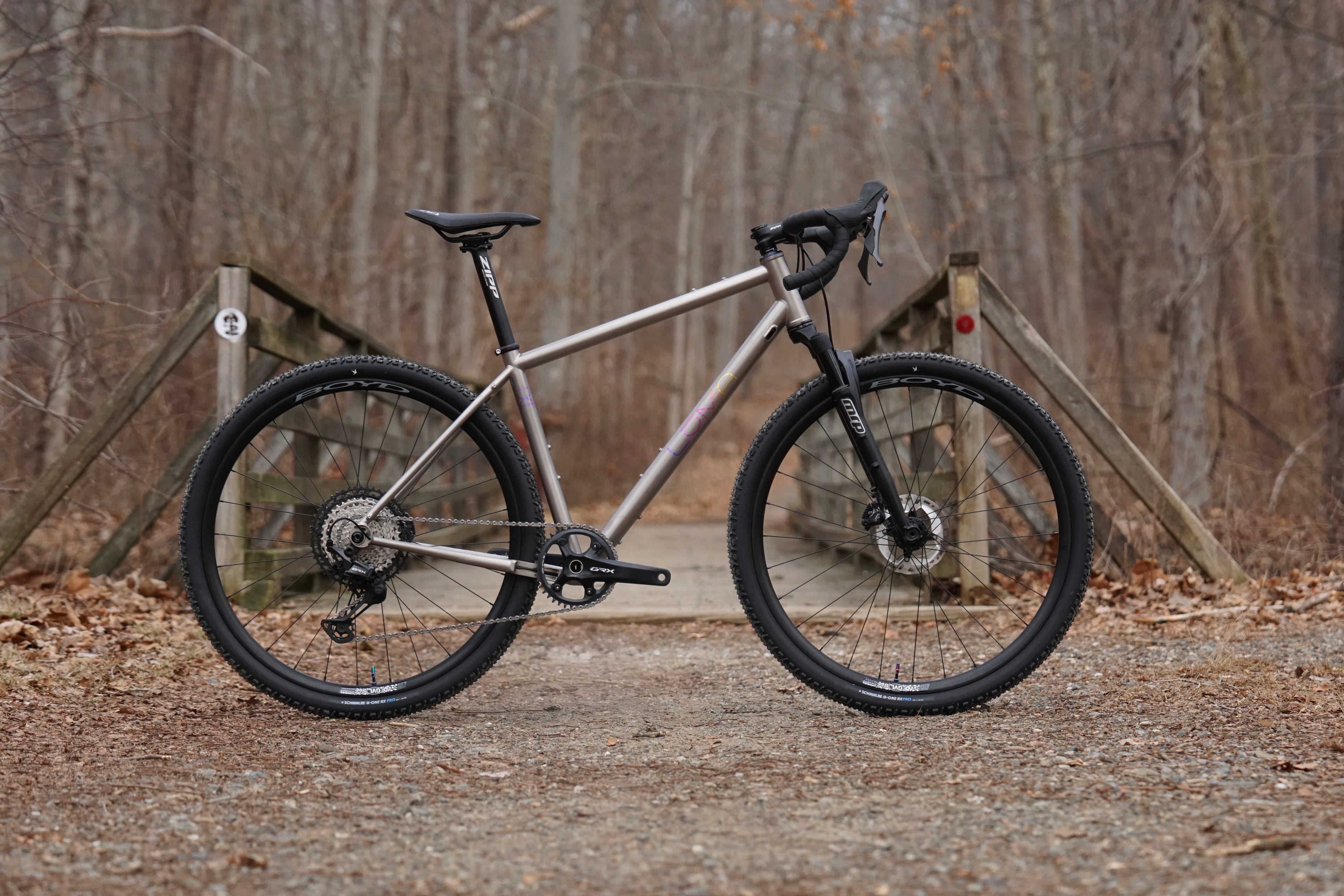

  • Luma Cycles Starparty Titanium Gravel Bike Ti Adventure bike front suspension
  • Luma Cycles Starparty Titanium Gravel Bike Ti Adventure bike front suspension

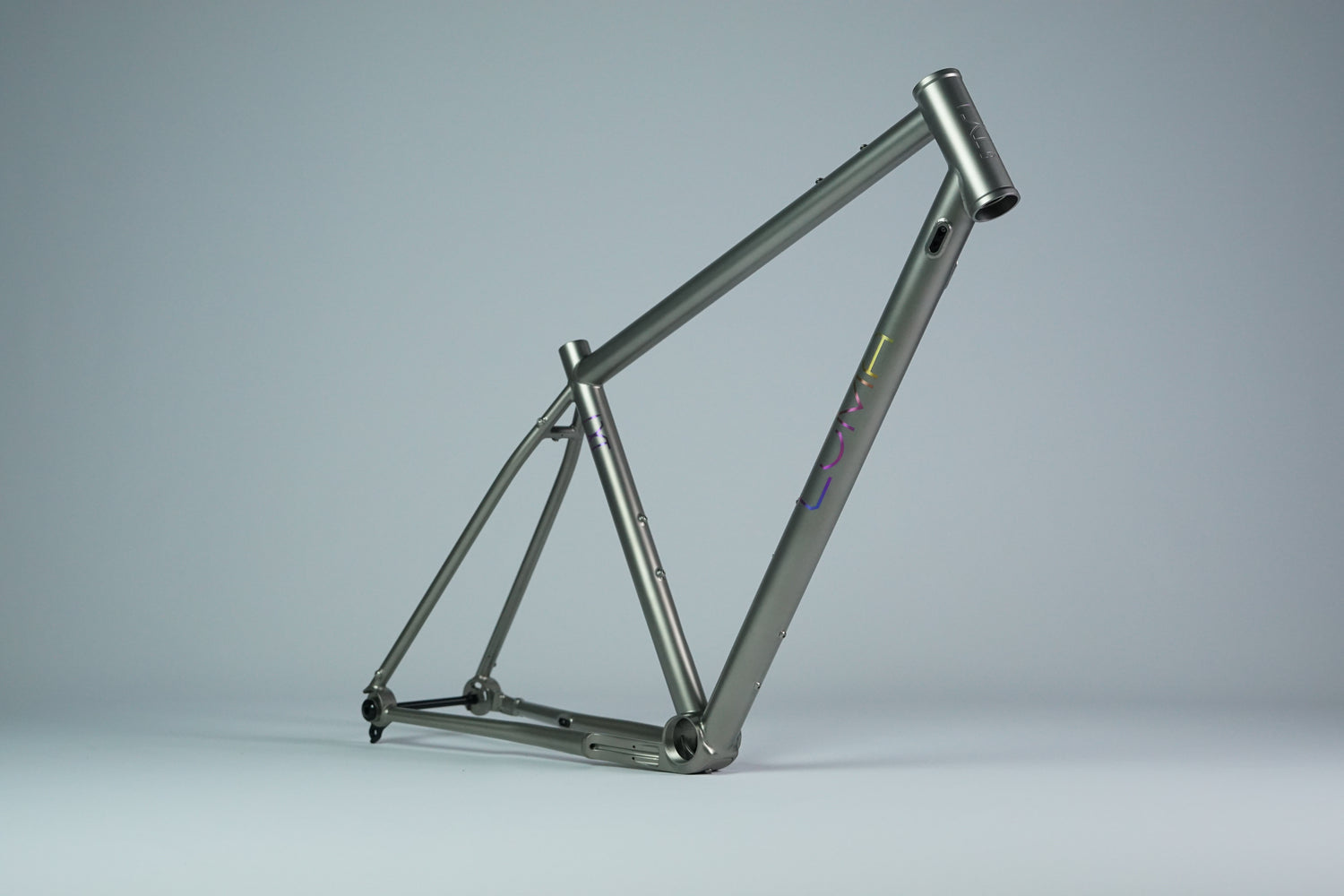

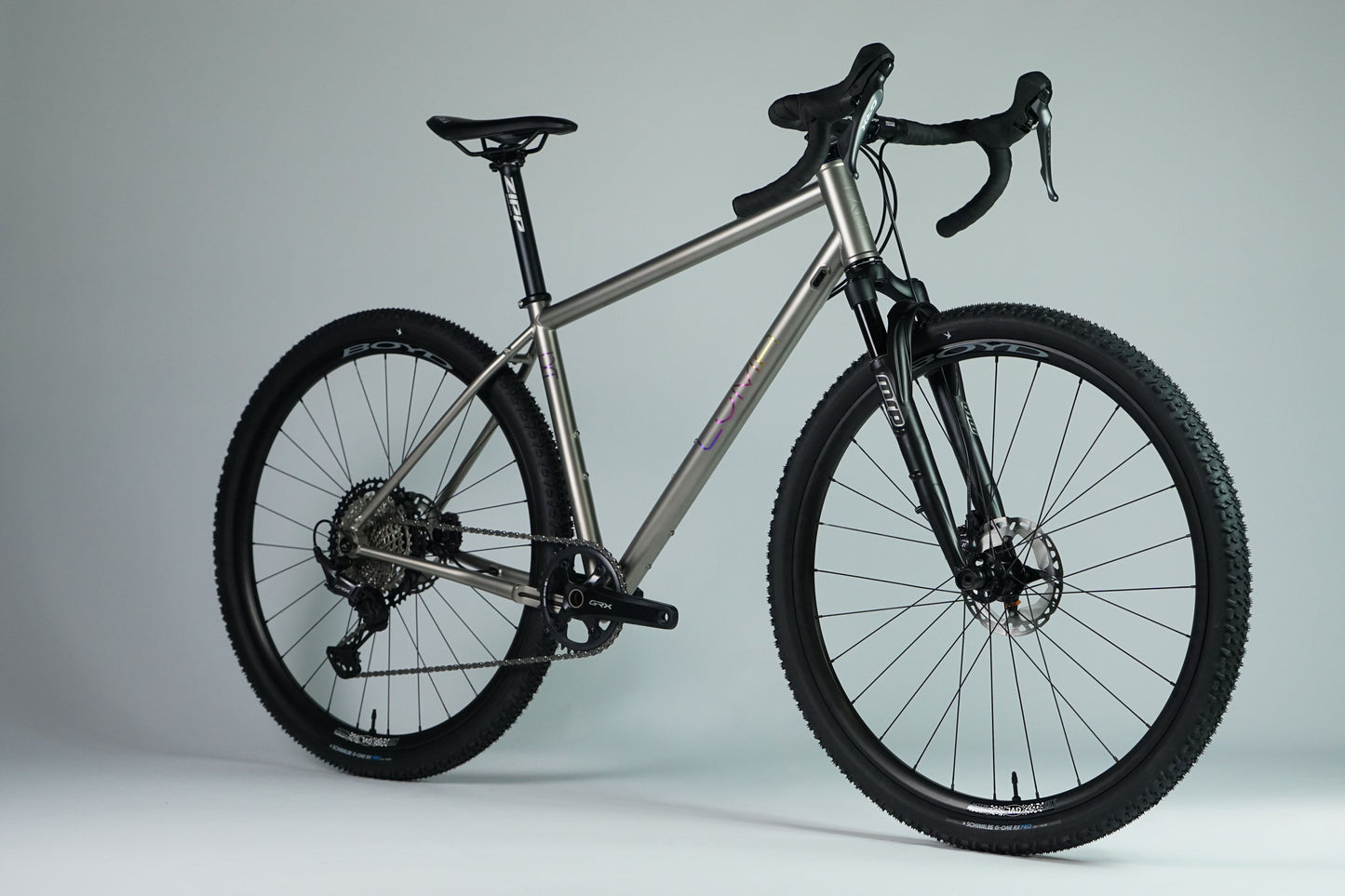

  • luma starparty 3/4 front titanium gravel bike

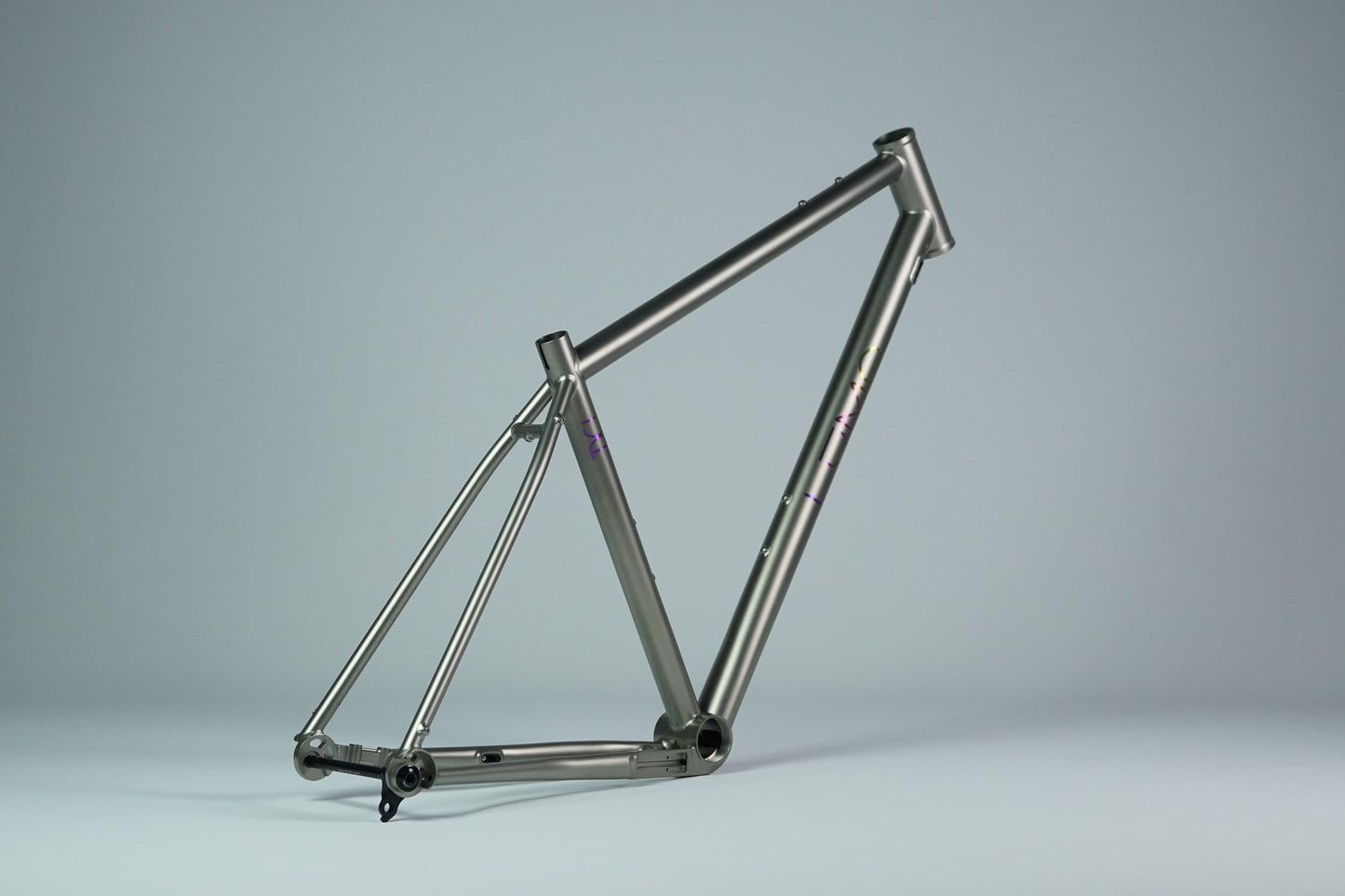

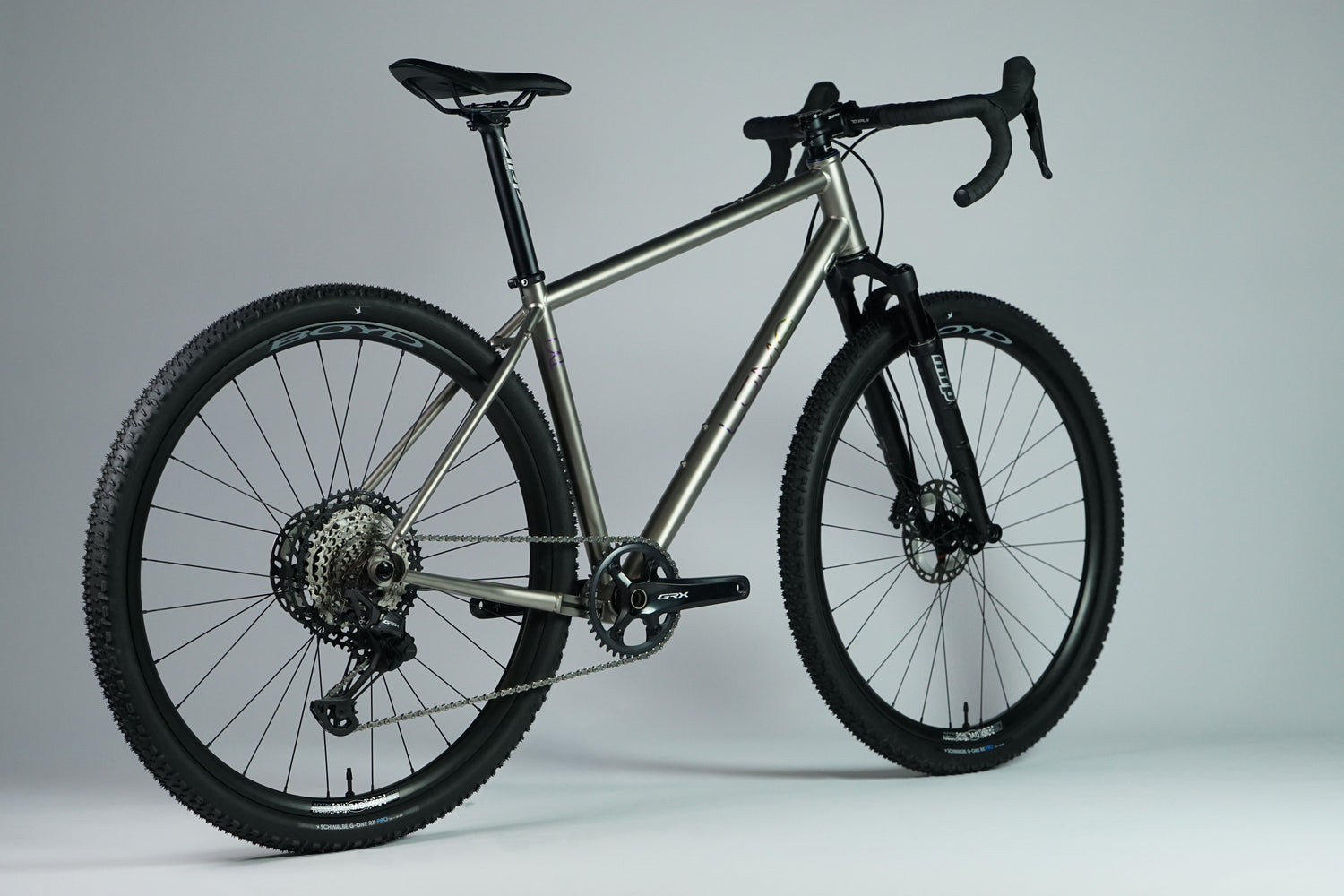

  • luma starparty 3/4 rear Titanium gravel bike

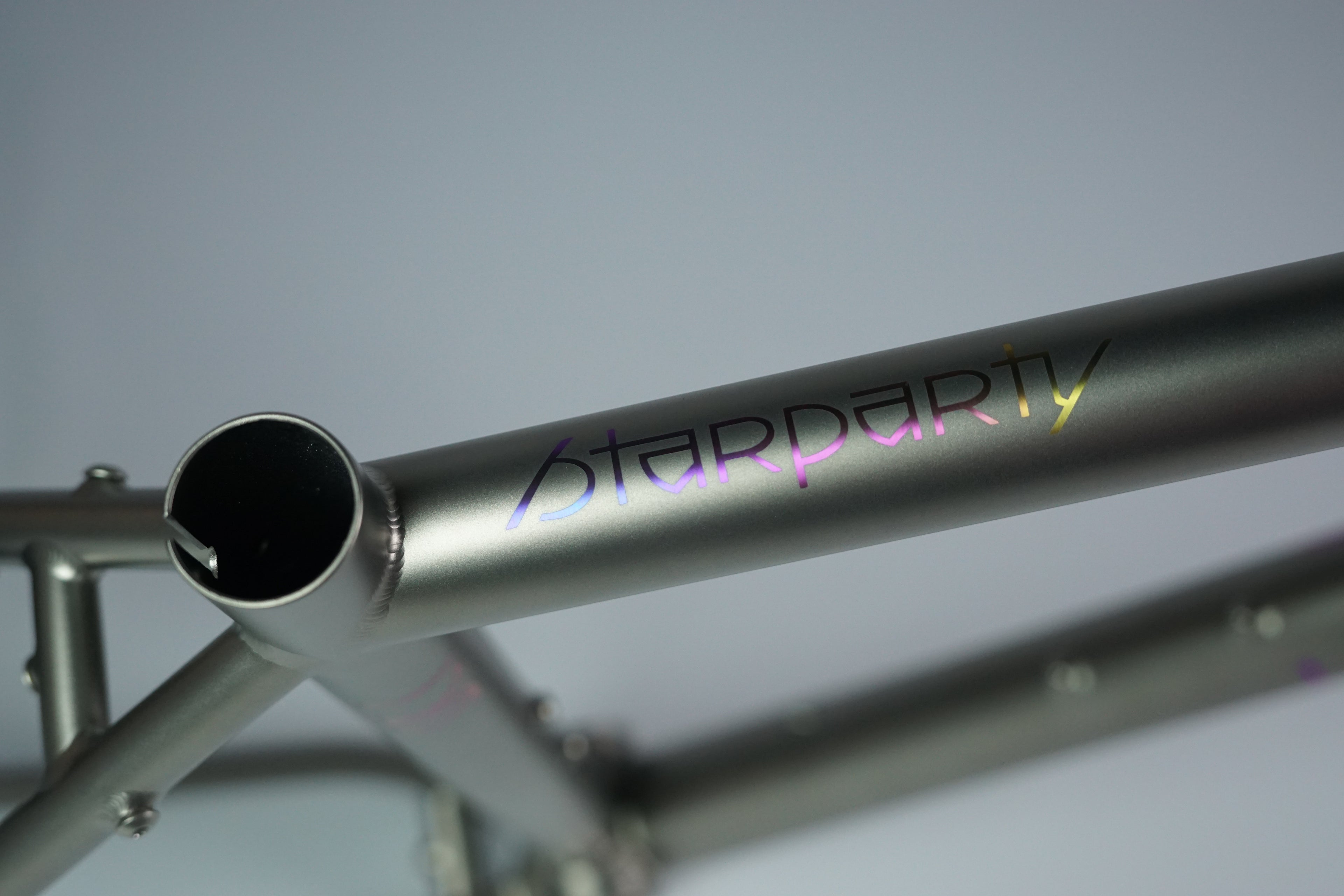

  • Luma Starparty Top Tube
  • Luma gravel Headtube

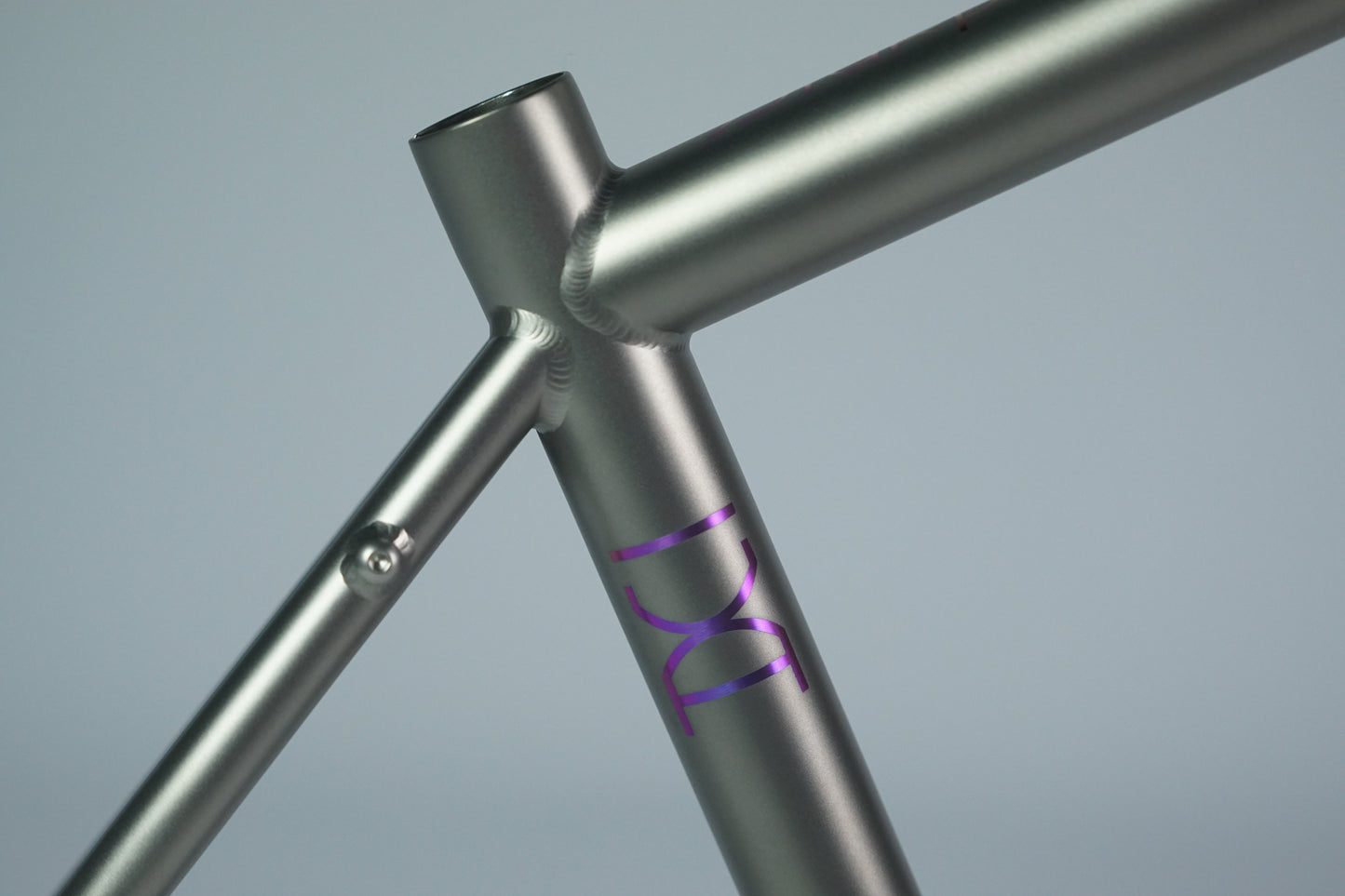

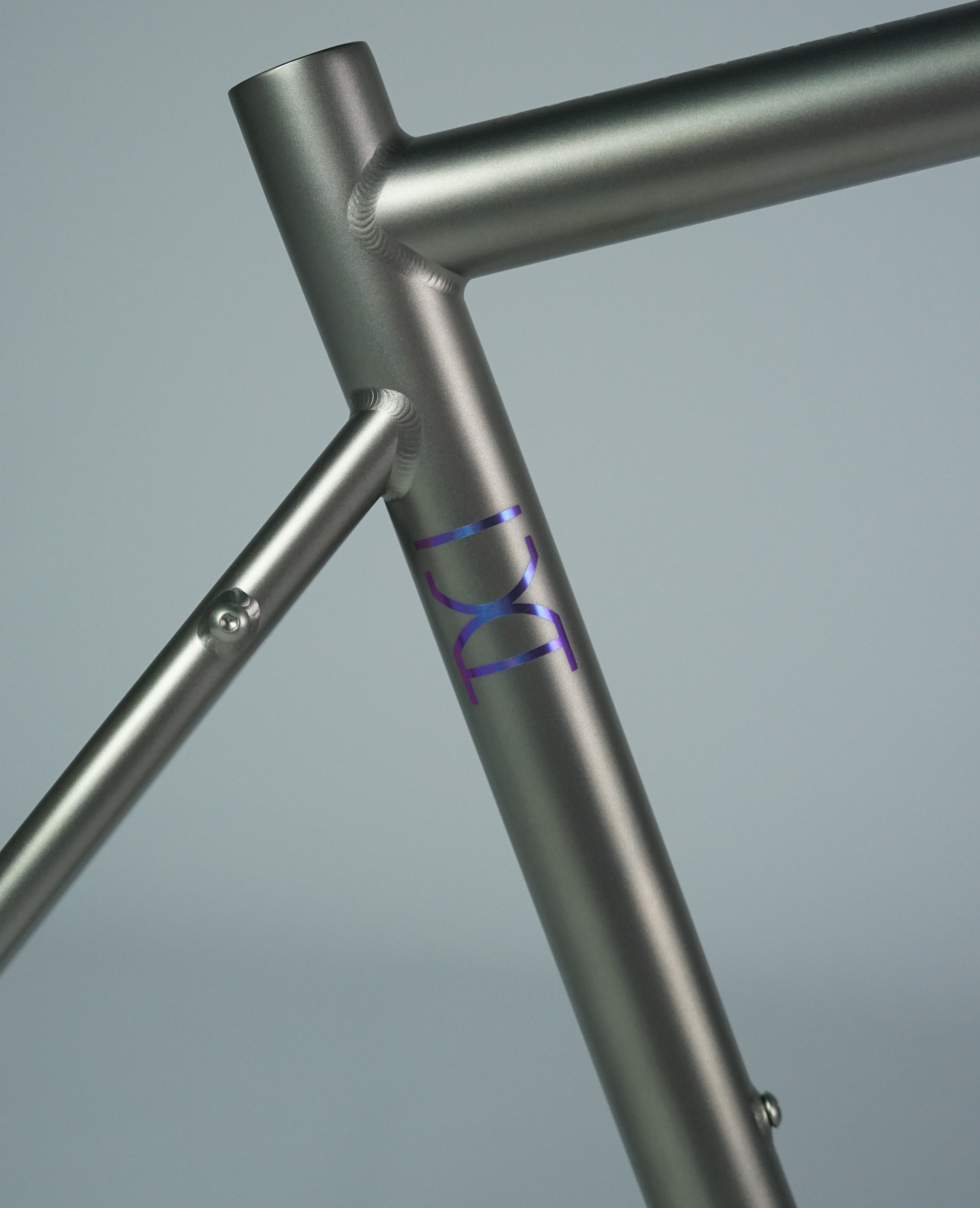

  • luma seattube
  • Luma gravel Brake mount

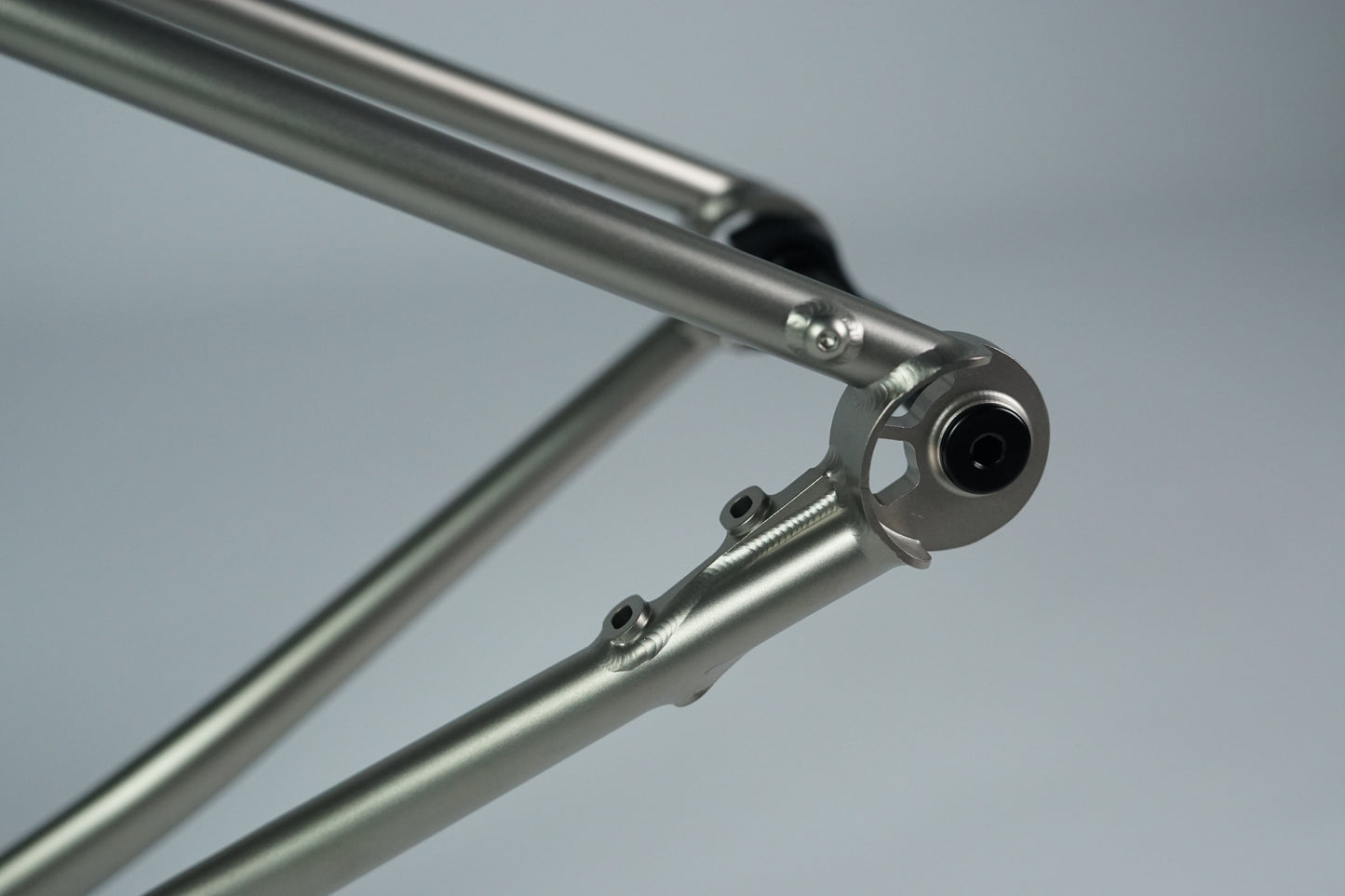

  • Luma UDH Dropout
1 11

LŪMA Cycles

Starparty

Starparty

Starparty is a gravel adventure bike for those big days, where you never know if the road will turn to a trail. Engineered to work with a 60mm suspension fork and big ol’ tires to keep you fresh no matter how far out the ride goes.

Standard Features:

·       Suspension Corrected Geometry

·       T47 Threaded Bottom Bracket

·       Full Assortment of Rack, Bottle, and Fender Mounts

·       UDH Derailleur Hanger

·       700x50c Tire Clearance

·       Di2, AXS, Mechanical Shifting Compatibility

·       Internal Cable Routing

·       Grade 9 3Al/2.5V Titanium

$3,899.00 USD
$3,899.00 USD
Sale Sold out
Size
Build

Warranty

10 Year Warranty

LŪMA Cycles guarantees our frames are free of flaws and defects in material and craftsmanship, and offers a lifetime year warranty on all of our Titanium framesets. This warranty extends to the original owner of the frameset only, and it is not transferable to another individual.

For more information visit our Warranty page.

Shipping Timeline

All complete bikes are built to order, please allow 2-3 weeks for completes to be shipped. Framesets will be fulfilled within 2 business days of the order date.

View full details
luma starparty 3/4 front titanium gravel bike

Suspension Correct

The Starparty was made for travel, front suspension travel. We started with our progressive gravel geometry, and corrected it for use with 60mm suspension forks. From there we adjusted the sizing to work with shorter stems to maintain the ride characteristics no matter where in the travel the fork sits.

Luma Down tube logo

Titanium Construction

Starparty is made of Double Butted Grade 9 3Al/2.5V Titanium. All welds are done with a double pass to match the tubeset in strength and longevity. The tubeset chosen for the Starparty prioritizes control and stability. This frame can handle the hits of being in the trails, while still being comfortable for full days in the saddle.

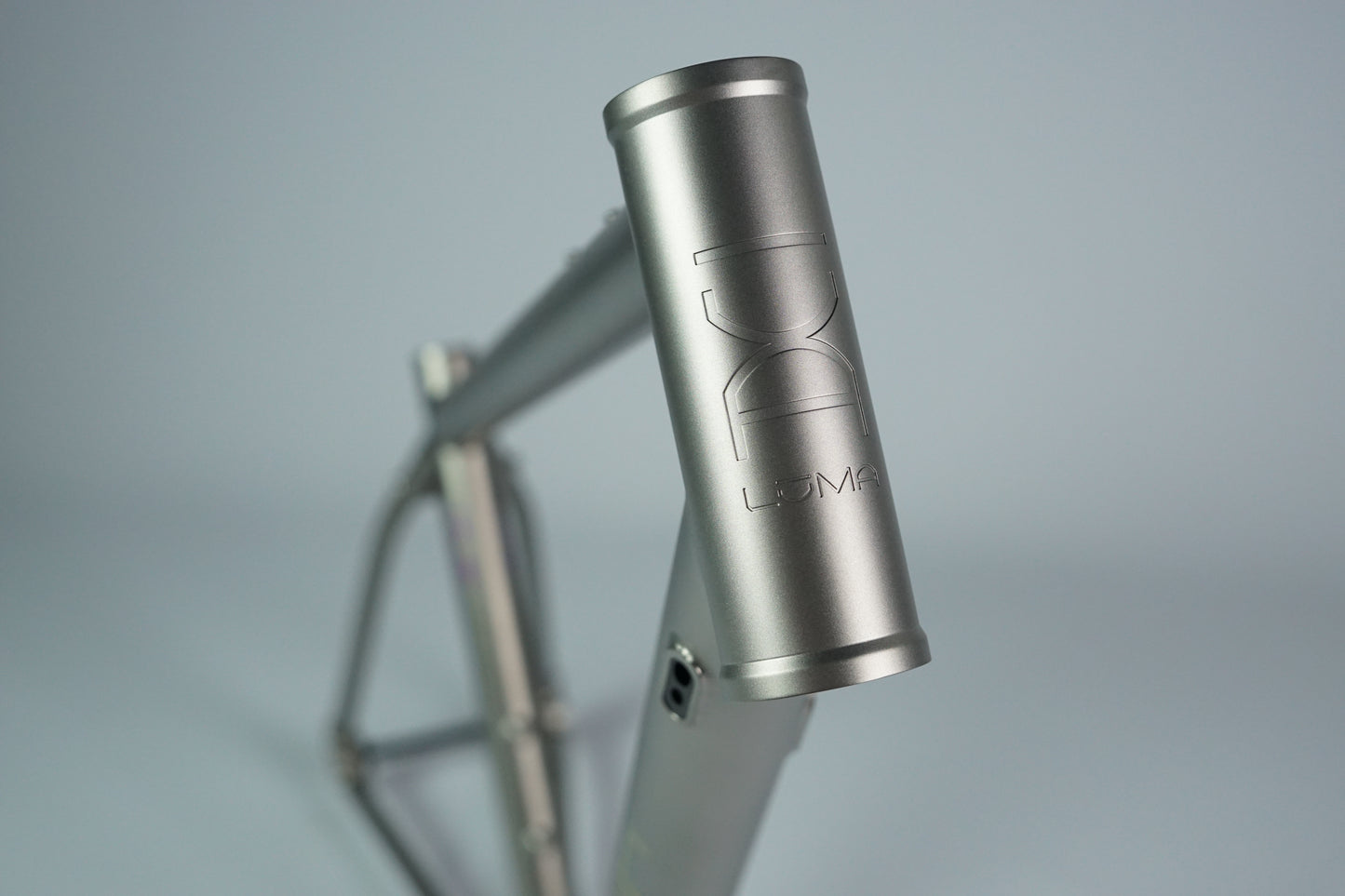

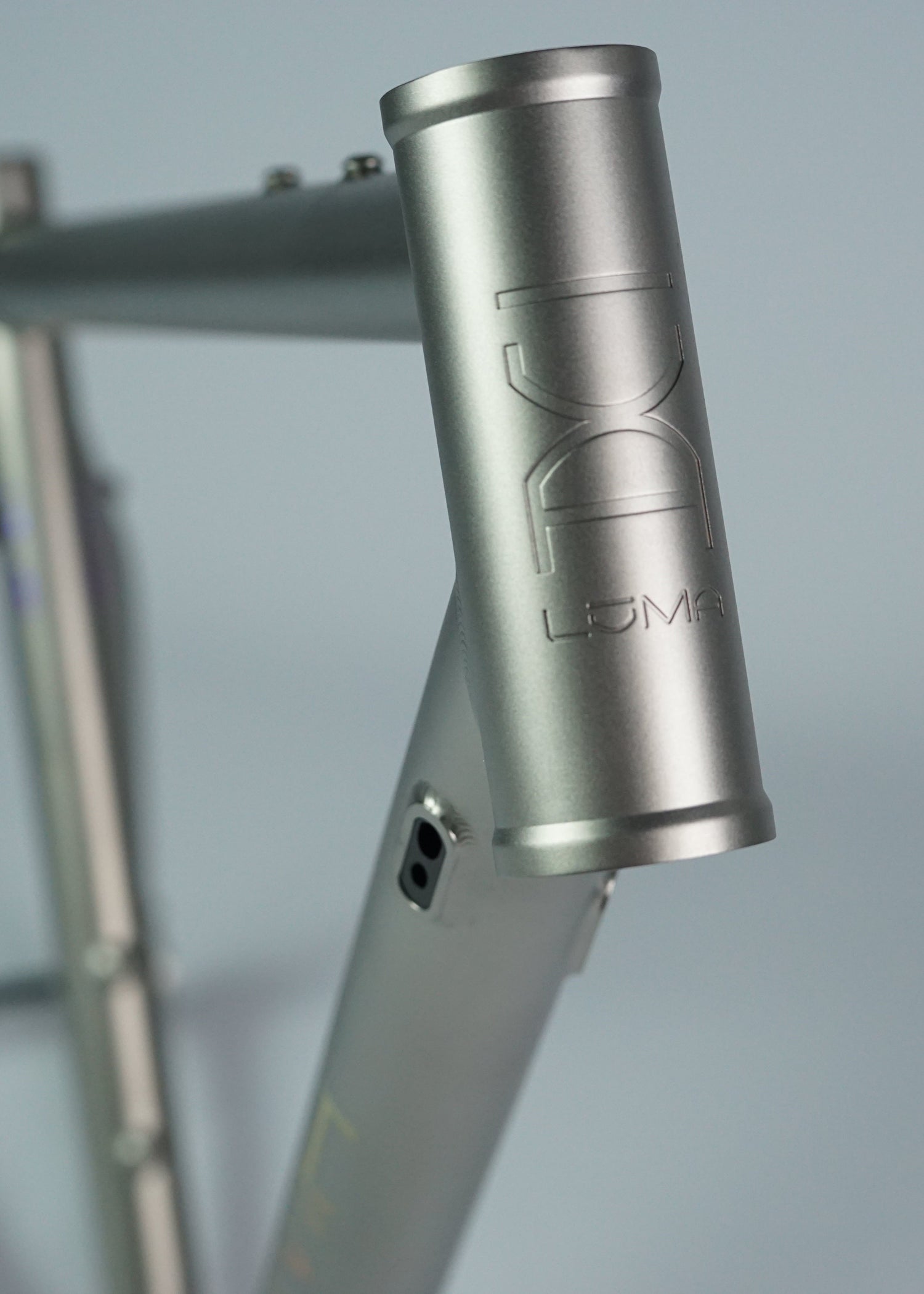

Luma gravel Headtube ti bike

Internal Cable Routing

Our frames are designed to use internal cable routing for mechanical drivetrains, with the option to go fully integrated on electronic drivetrains builds. Cable ports on the downtube that run through the frame allow smooth operation of mechanical shifting. Porting inside the headtube and downtube provide space to allow brake hoses on bikes built using drivetrains without cables.

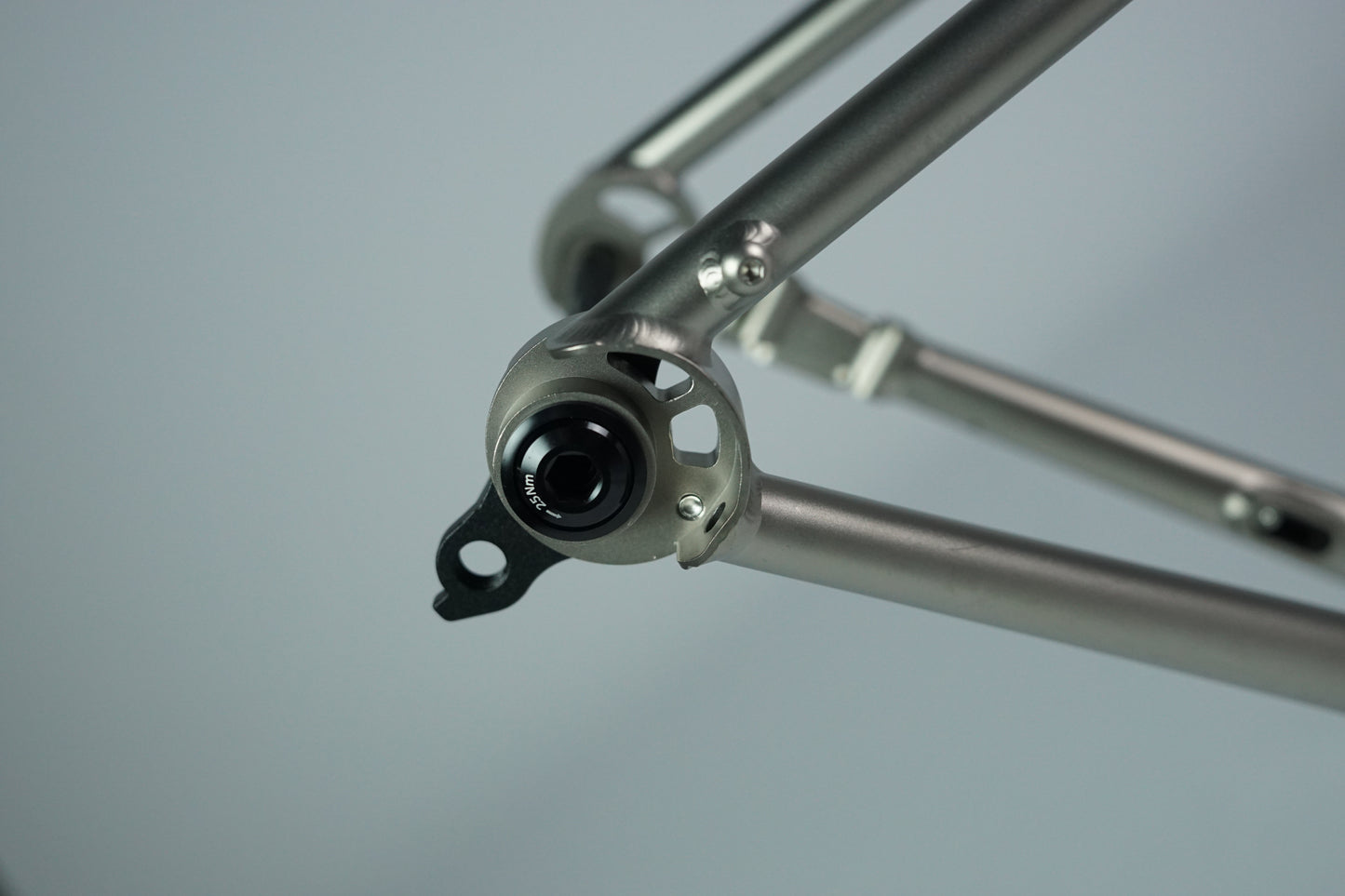

Luma UDH Dropout SRAM universal derailleur hanger

UDH Hanger

All Luma models come standard with UDH hangers. That means a replacement can be sourced anywhere, anytime with no proprietary parts. It also means compatibility with every derailleur option out there.

Luma gravel Bottom Bracket BB titanium bike ti bike

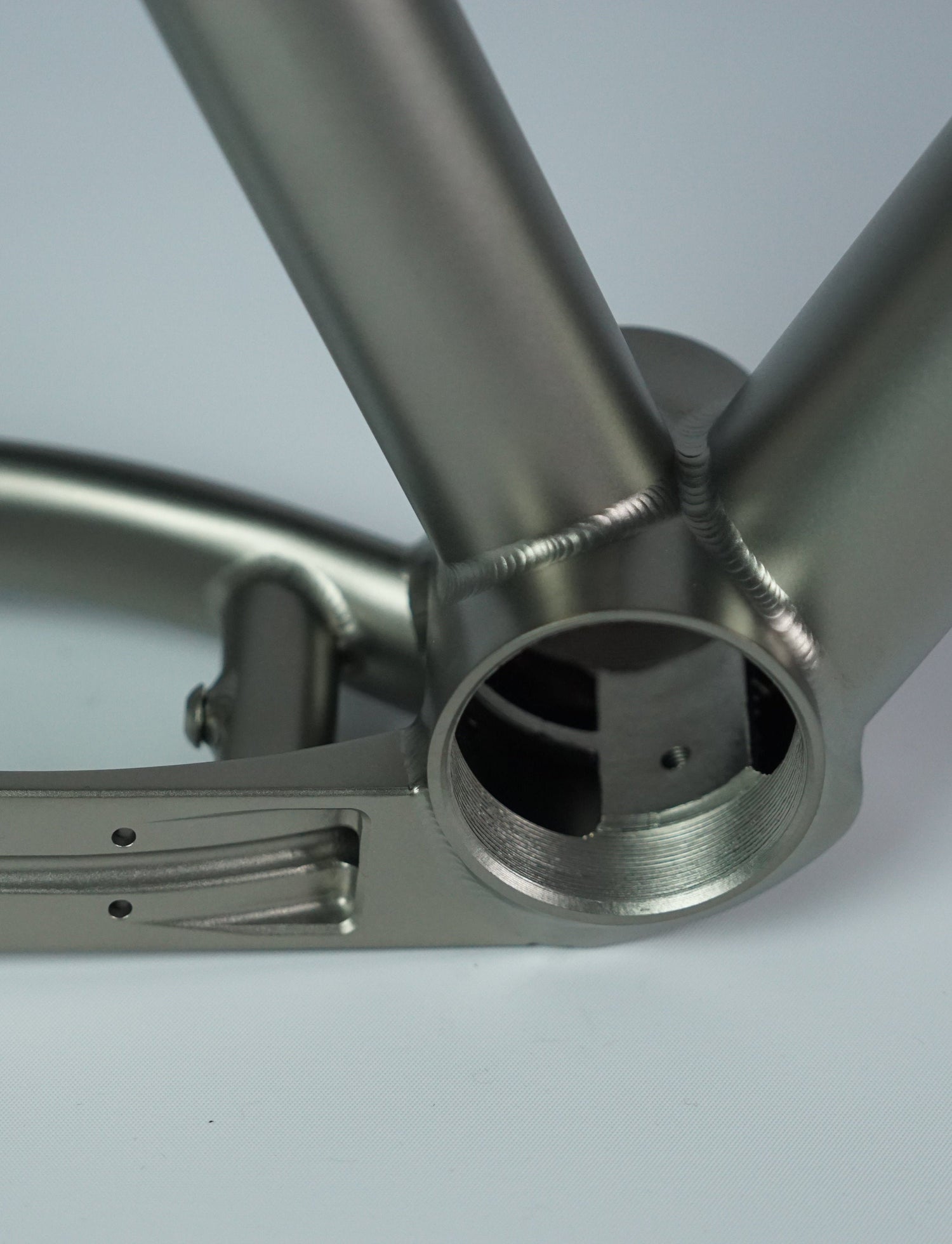

BB Cable Cradle

Our bottom bracket is designed for ultimate simplicity and ease of use. An access plate underneath leads to a cable cradle that allows each housing to have it's own path. The cable cradle also separate the cable from bottom bracket, allowing for easier maintenance of both components.

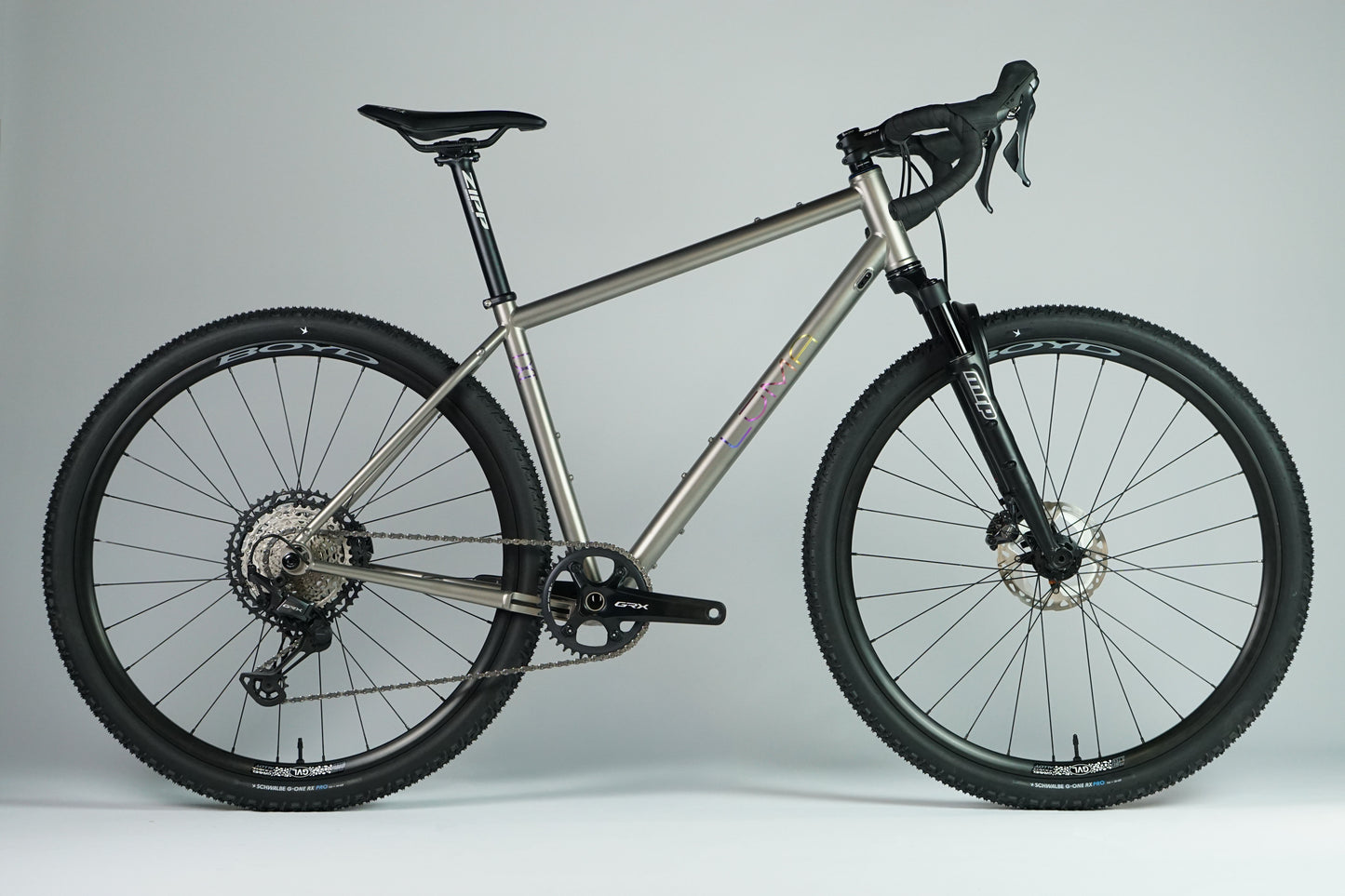

Luma Cycles Starparty Titanium Gravel Bike Ti Adventure bike front suspension

Build Options

The Starparty is available as a frameset or a complete. Use the build options to create your dream gravel adventure bike or keep it stock with the standard spec.

Build Specs

Frameset

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Adventure

Axles: LV2 F12x100 / LV2 R12x142

Shimano GRX R820 1x12

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: MRP Baxter II 60mm

Headset: FSA Orbit ITA

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: Shimano GRX R820 12spd

Brake: Shimano GRX RX-820

Rotor: Shimano RT-MT900S 160/160

Rear Derailleur: Shimano GRX RX822-SGS

Crankset: Shimano GRX RX820 40t

Chain: Shimano CN-M7100 HG

Cassette: Shimano CS-M8100 10-51t

Wheelset: Boyd GVL

Tire: Vittoria T50 Mixed Gravel Endurance 700x50c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 31.6

Bar Tape: Selle Italia Smart Tape

Saddle: Selle San Marco GND Full Fit Startup

SRAM Rival T-Type AXS 1x12

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: MRP Baxter II 60mm

Headset: FSA Orbit ITA

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: SRAM D.U.B. T47

Shifter: SRAM Rival AXS XPLR

Brake: SRAM Rival XPLR

Rotor: SRAM Paceline CL 160

Rear Derailleur: SRAM GX Eagle AXS Transmission

Crankset: SRAM Rival DUB 1 x 40t

Chain: SRAM GX Eagle Transmission Flattop

Cassette: SRAM Xs-1275 10-52t

Wheelset: Boyd GVL

Tire: Vittoria T50 Mixed Gravel Endurance 700x50c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 31.6

Bar Tape: Selle Italia Smart Tape

Saddle: Selle San Marco GND Full Fit Startup

SRAM Rival XPLR AXS 1x13

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: MRP Baxter II 60mm

Headset: FSA Orbit ITA

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: SRAM D.U.B. T47

Shifter: SRAM Rival XPLR AXS

Brake: SRAM Rival XPLR AXS

Rotor: SRAM Paceline CL 160

Rear Derailleur: SRAM Rival XPLR AXS

Crankset: SRAM Rival XPLR AXS DUB 1 x 42t

Chain: SRAM Rival XPLR AXS Flattop

Cassette: SRAM Rival XPLR AXS 10-46t

Wheelset: Boyd GVL

Tire: Vittoria T50 Mixed Gravel Endurance 700x50c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 31.6

Bar Tape: Selle Italia Smart Tape

Saddle: Selle San Marco GND Full Fit Start Up

SRAM Force T-Type AXS 1x12

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: MRP Baxter II 60mm

Headset: FSA Orbit ITA

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: SRAM D.U.B. T47

Shifter: SRAM Force XPLR AXS

Brake: SRAM Force XPLR AXS

Rotor: SRAM Paceline CL 160

Rear Derailleur: SRAM X0 Eagle AXS Transmission

Crankset: SRAM Force D.U.B. 40t

Chain: SRAM X0 Eagle Transmission Flattop

Cassette: SRAM XS-1295 10-52t

Wheelset: Boyd GVL

Tire: Vittoria T50 Gravel Mixed Endurance 700x50c

Stem: Zipp Service Course

Handlebar: Zipp 70 XPLR

Seatpost: Zipp Service Course 31.6

Bar Tape: Selle Italia Smart Tape

Saddle: Selle San Marco GND Full Fit Start Up

SRAM Force XPLR AXS 1x13

Frame: LūMA Starparty Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: MRP Baxter II 60mm

Headset: FSA Orbit ITA

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: SRAM D.U.B. T47

Shifter: SRAM Force XPLR AXS

Brake: SRAM Force XPLR AXS

Rotor: SRAM Paceline CL 160

Rear Derailleur: SRAM Force XPLR AXS

Crankset: SRAM Force XPLR AXS DUB 42t

Chain: SRAM Force XPLR AXS Flattop

Cassette: SRAM Force XPLR AXS 10-46t

Wheelset: Boyd GVL

Tire: Vittoria T50 Gravel Mixed Endurance 700x50c

Stem: Zipp Service Course

Handlebar: Zipp 70 XPLR

Seatpost: Zipp Service Course 31.6

Bar Tape: Selle Italia Smart Tape

Saddle: Selle San Marco GND Full Fit Start Up

1 3

Frame Info

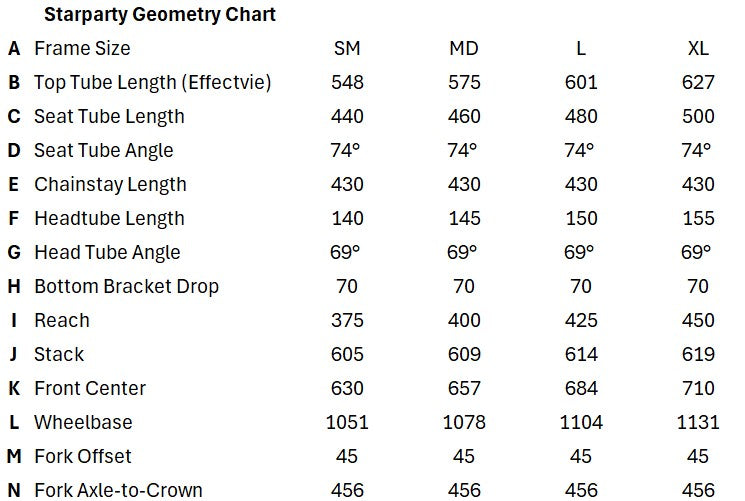

Luma Starparty frame geometry chart

Frame Specs

Frame: LūMA Cycles Grade 9 3Al/2.5V Titanium Double-Butted

Headset: Upper ZS44/28.6 Lower EC44/40

Seat Tube Diameter: 31.6mm

Bottom Bracket: T47-68

Hanger: UDH

Axle: 12x142 Thru-axle

Front Derailleur Mount: 34.9mm band-clamp

Brake Mount: Flat Mount 160mm

Max Tire: 700x50c

Max Chainring: 1x: 42T    2x: 50/34T

Mounts: 3 bottles, top tube, rack, fenders, fork legs

Max Rider Weight: 250lbs

Country of Manufacture: China
