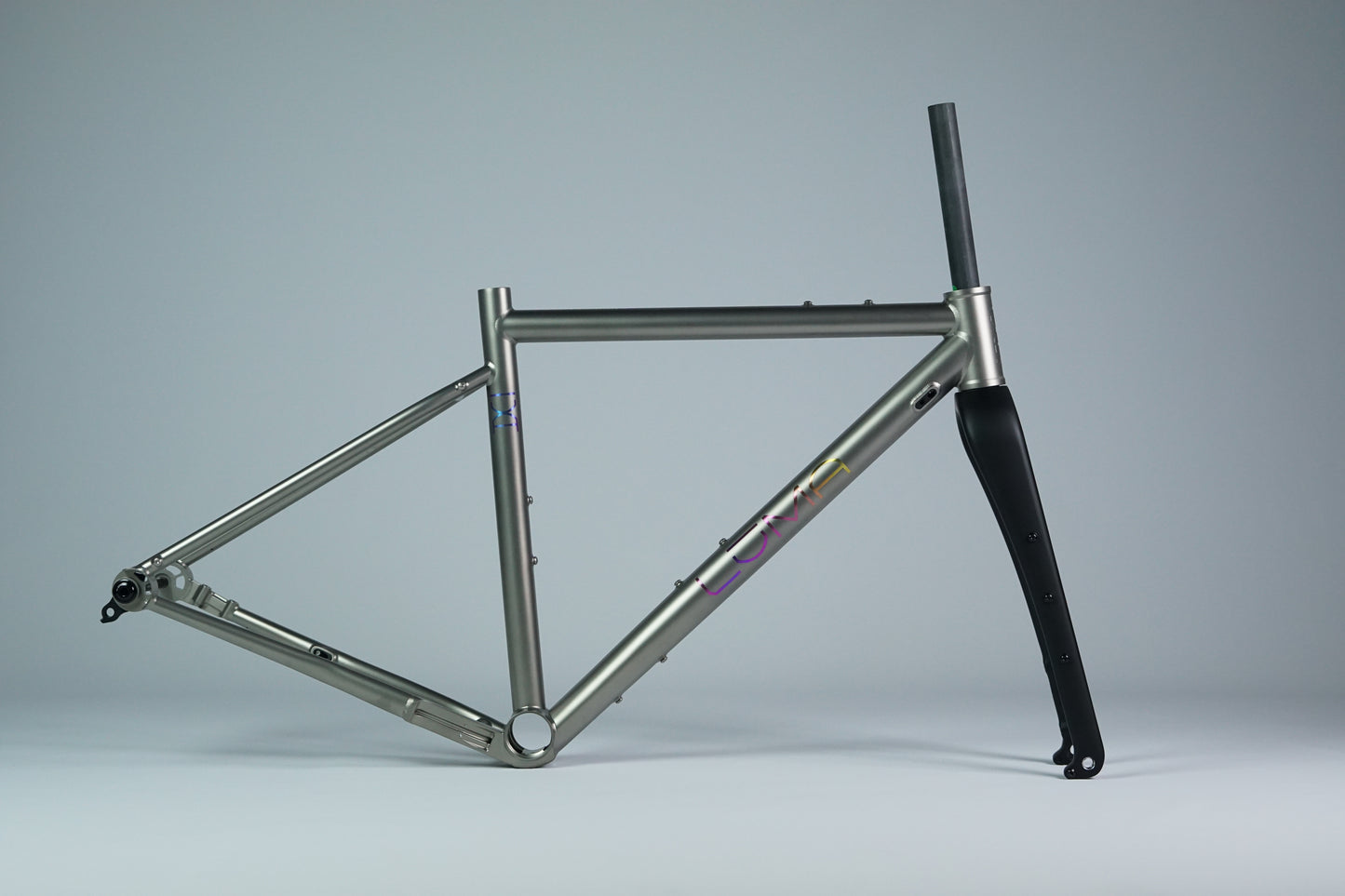

• titanium gravel bike luma meridian profile 49cm frameset ti bike
  • Luma Cycles Meridian Titanium ravel Bike SRAM Force AXS Mullet X0 Transmission
  • Luma Cycles Meridian Titanium ravel Bike SRAM Force AXS Mullet X0 Transmission
  • titanium gravel bike luma meridian front 3/4 54cm frameset ti bike

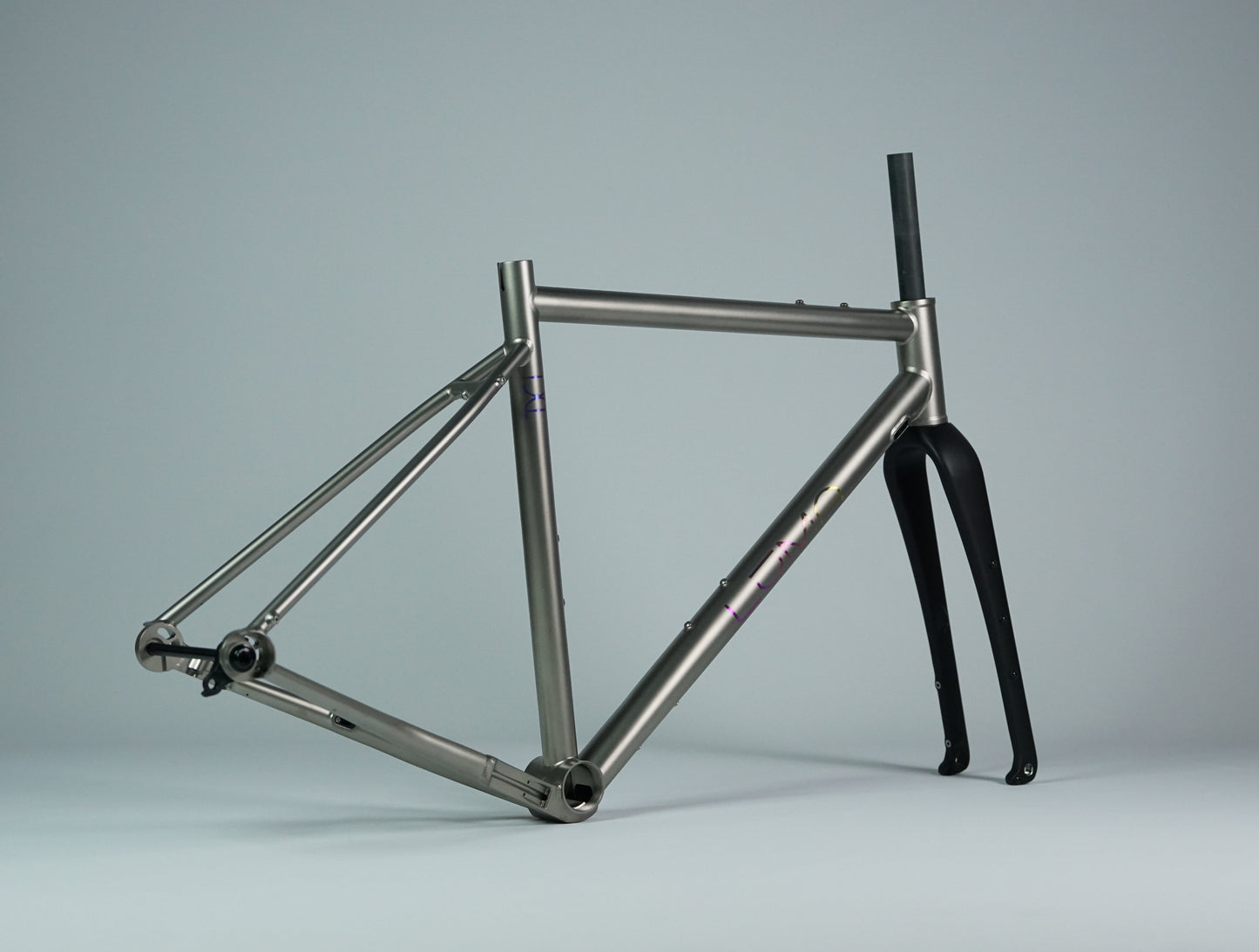

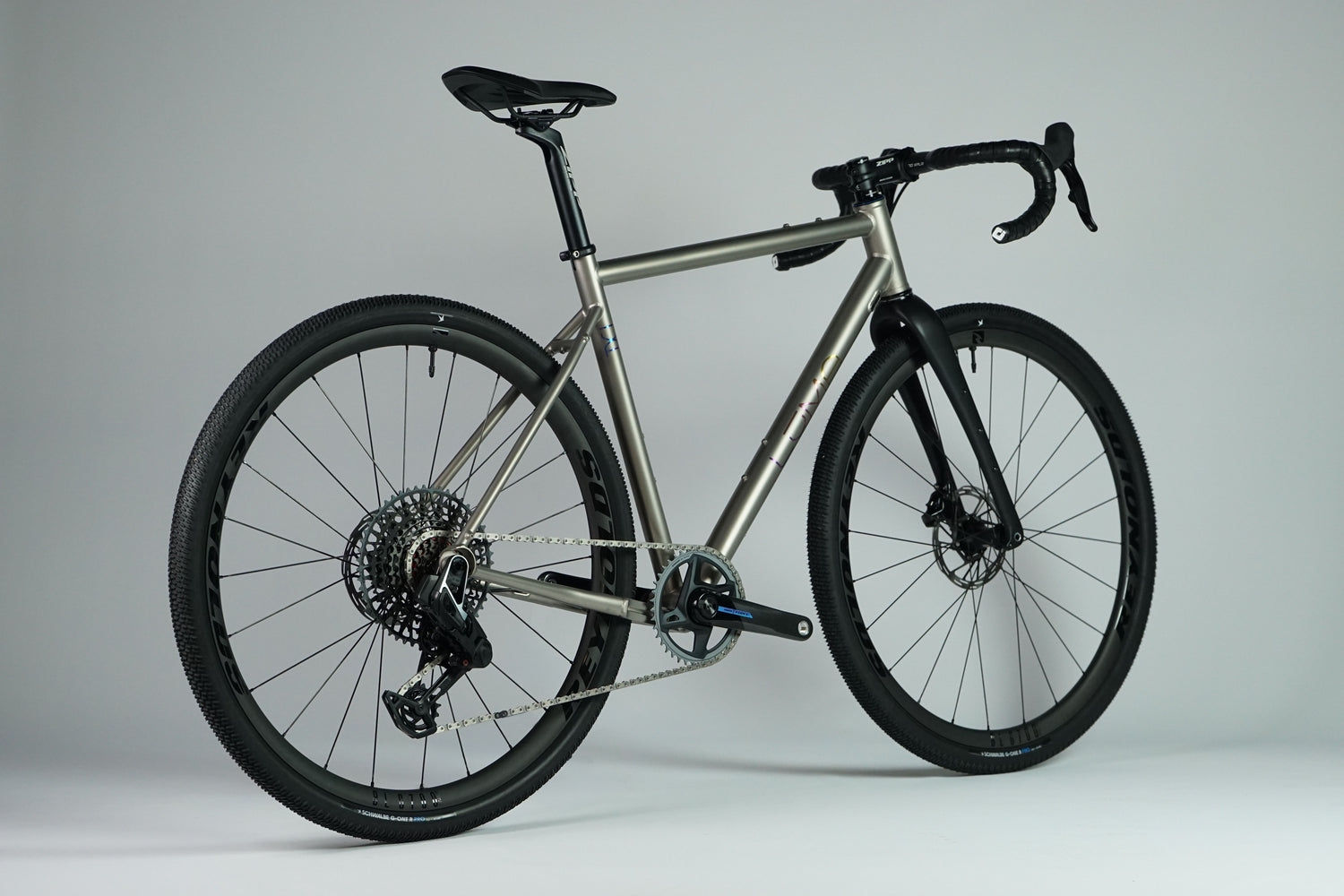

  • luma meridian rear 3/4 54cm titanium gravel bike frameset ti bike

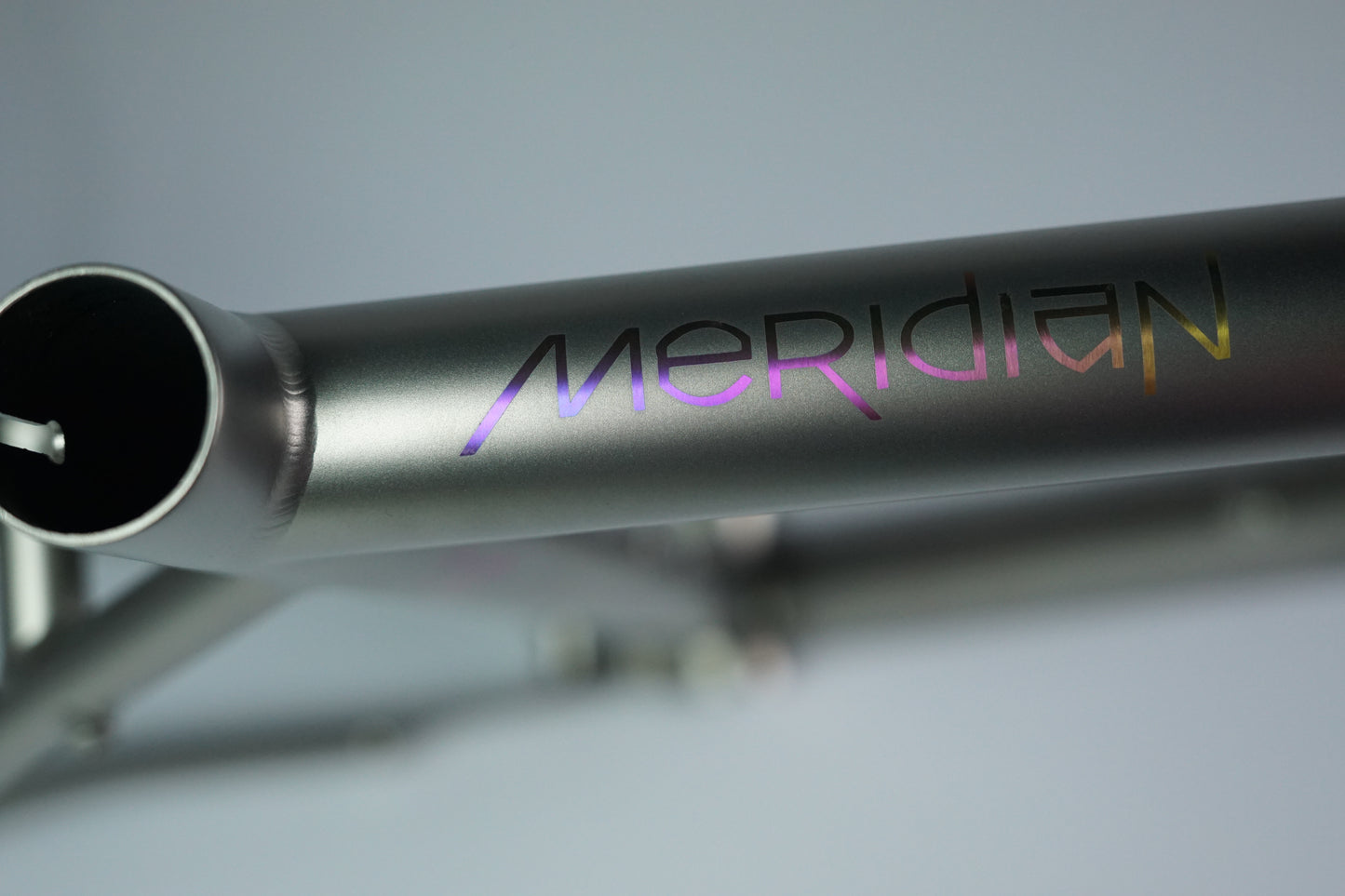

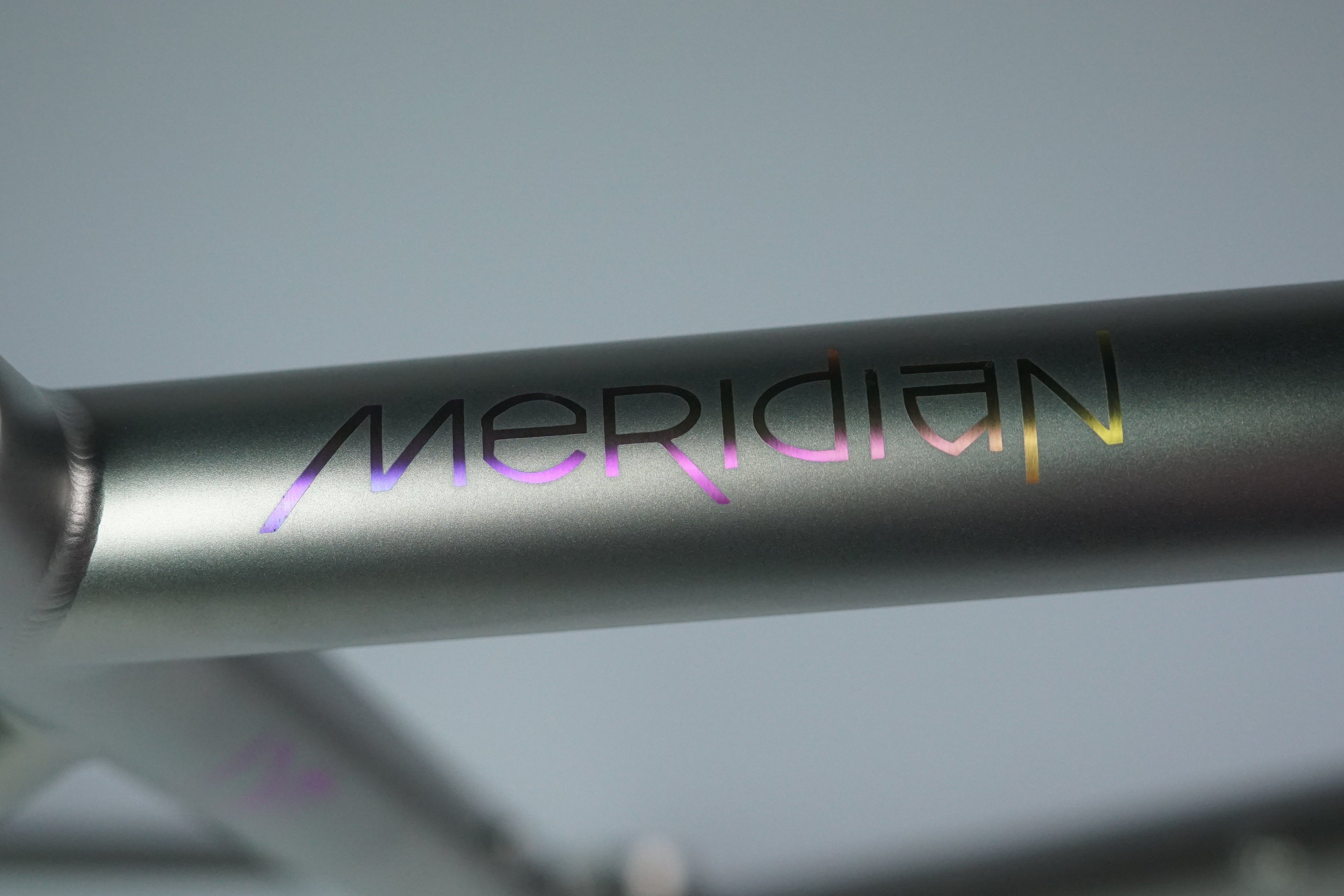

  • Luma Meridian Top Tube ti bike
  • Luma gravel Headtube ti bike

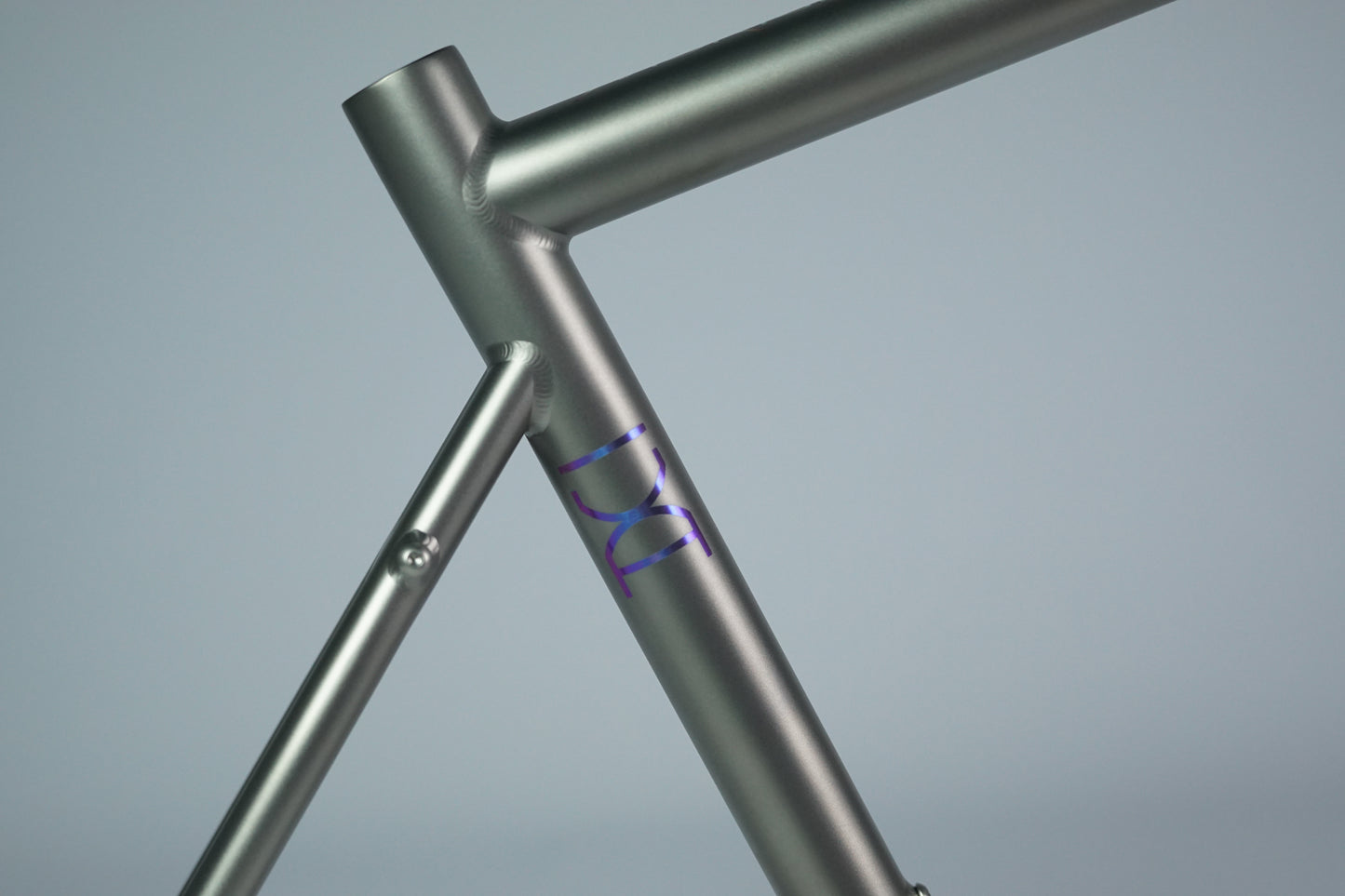

  • Luma Seattube ti bike titanium gravel bike
  • Luma gravel Bottom Bracket BB titanium bike ti bike
  • Luma gravel Brake Mount ti bike
  • Luma UDH Dropout SRAM universal derailleur hanger
NaN -Infinity

LŪMA Cycles

Meridian

Meridian

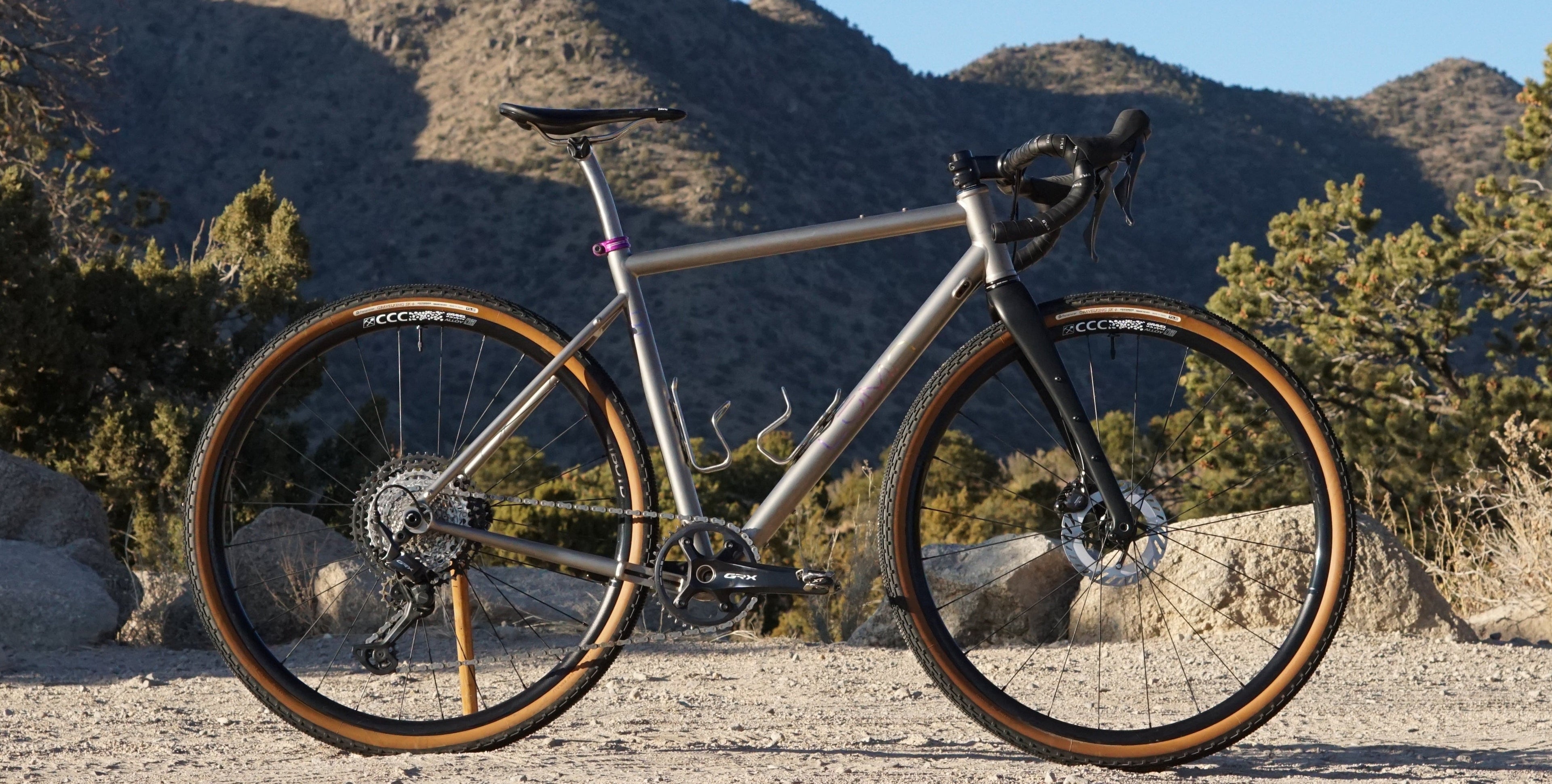

Meridian is the do-it-all gravel bike in our lineup. With modern gravel geo, 50mm tire clearance, and a complete assortment of rack mounting points, the Meridian will take you on your local gravel loop, or across the country.

Standard Features:

·       T47 Threaded Bottom Bracket

·       Full Assortment of Rack, Bottle, and Fender Mounts

·       UDH Derailleur Hanger

·       Carbon Gravel Fork with Mounts

·       700x50c Tire Clearance

·       Di2, eTap, Mechanical Shifting Compatibility

·       Grade 9 3Al/2.5V Titanium

$3,199.00
$3,199.00
Sale Sold out
Selection will add to the price

10 Year Warranty

LŪMA Cycles guarantees our frames are free of flaws and defects in material and craftsmanship, and offers a lifetime warranty on all of our Titanium framesets. This warranty extends to the original owner of the frameset only, and it is not transferable to another individual.

For more information visit our Warranty page.

All complete bikes are built to order, please allow 2-3 weeks for completes to be shipped. Framesets will be fulfilled within 2 business days of the order date.

View full details

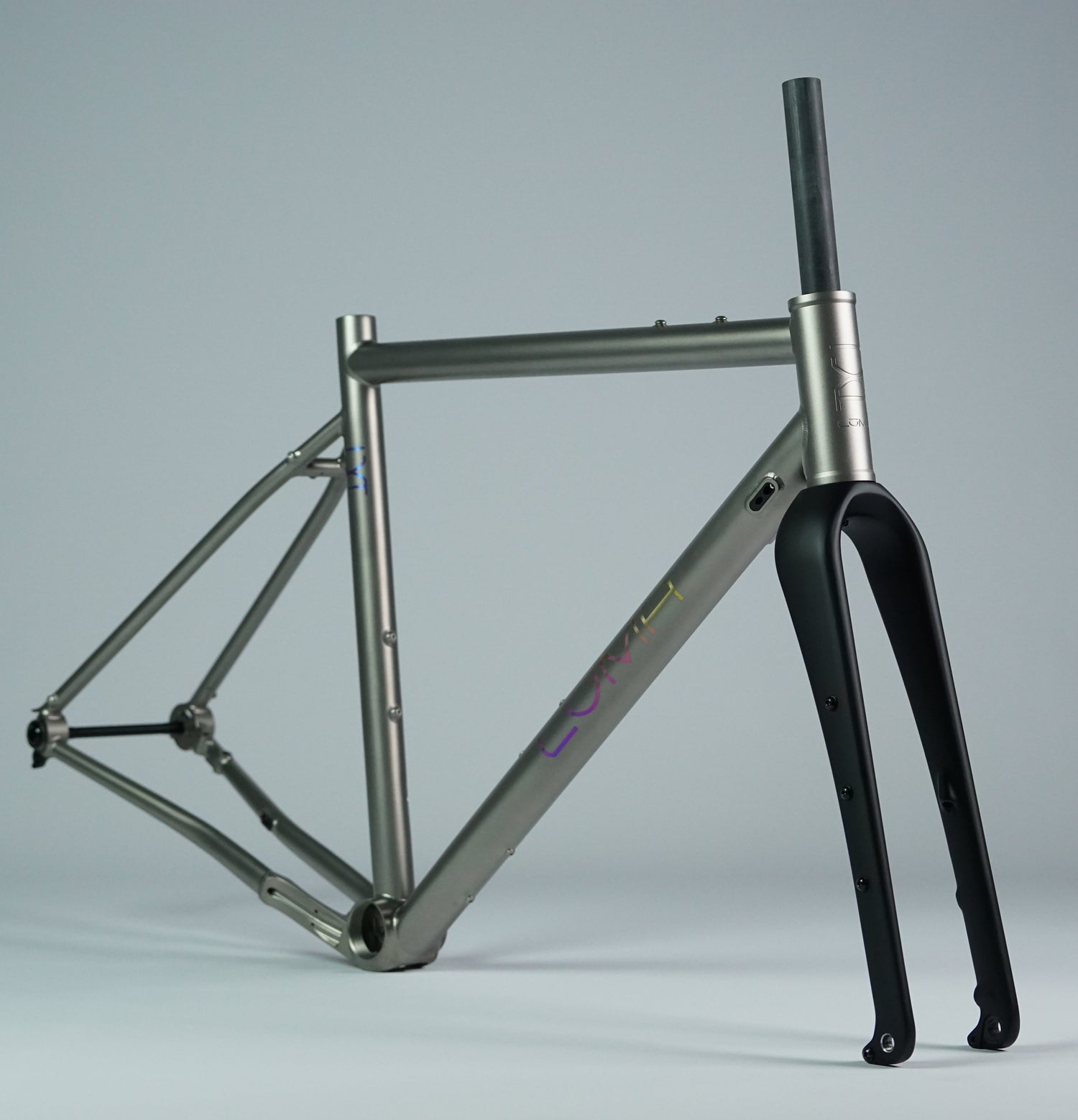

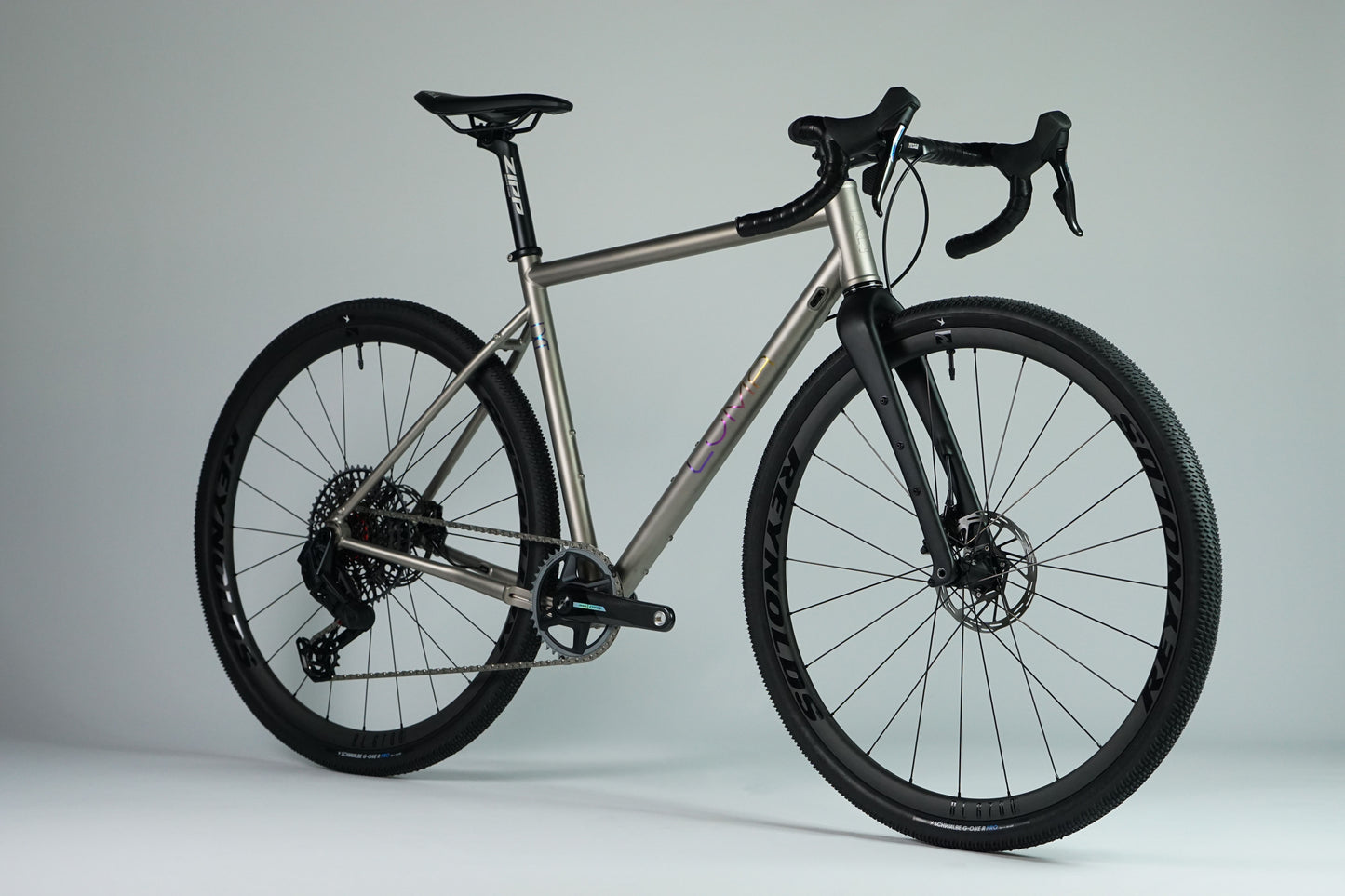

titanium gravel bike luma meridian front 3/4 54cm frameset ti bike

Fast and Stable Geo

The Meridian was designed to provide stability and confidence on the roughest terrain. The faster you go, the more it rewards you. The low BB provides a planted and stable feeling, while the headtube angle balances stability and a lively response to steering input. Together, this gives the bike a balanced weight split and unparalleled control in all kinds of conditions.

Luma Down tube logo

Titanium Construction

Meridian is made of Double Butted Grade 9 3Al/2.5V Titanium. All welds are done with a double pass to match the tubeset in strength and longevity. The Meridian was engineered with a tubeset spec that maximizes speed and efficiency, without sacrificing comfort.

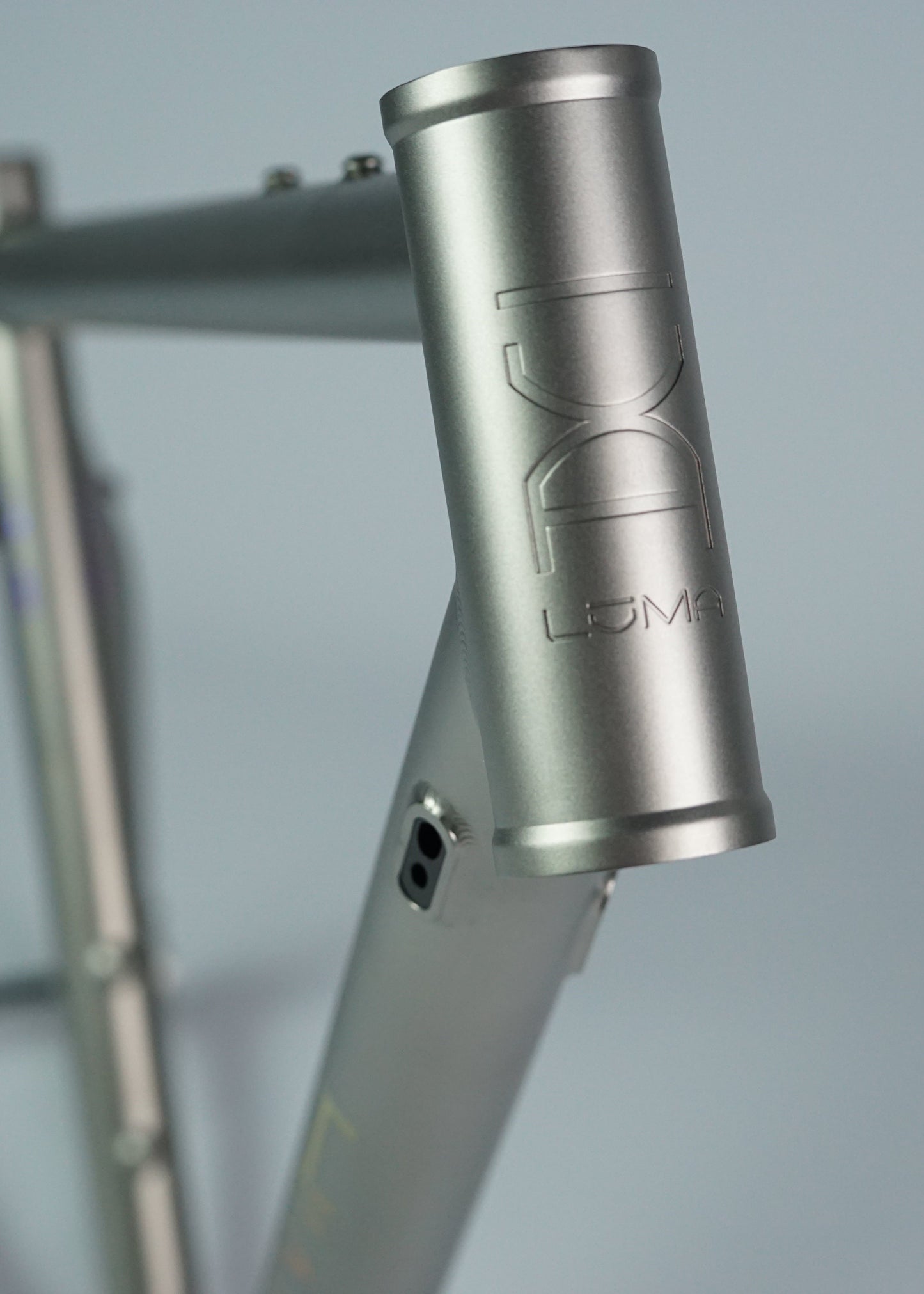

Luma gravel Headtube ti bike

Internal Cable Routing

Our frames are designed to use internal cable routing for mechanical drivetrains, with the option to go fully integrated on electronic drivetrains builds. Cable ports on the downtube that run through the frame allow smooth operation of mechanical shifting. Porting inside the headtube and downtube provide space to allow brake hoses on bikes built using drivetrains without cables.

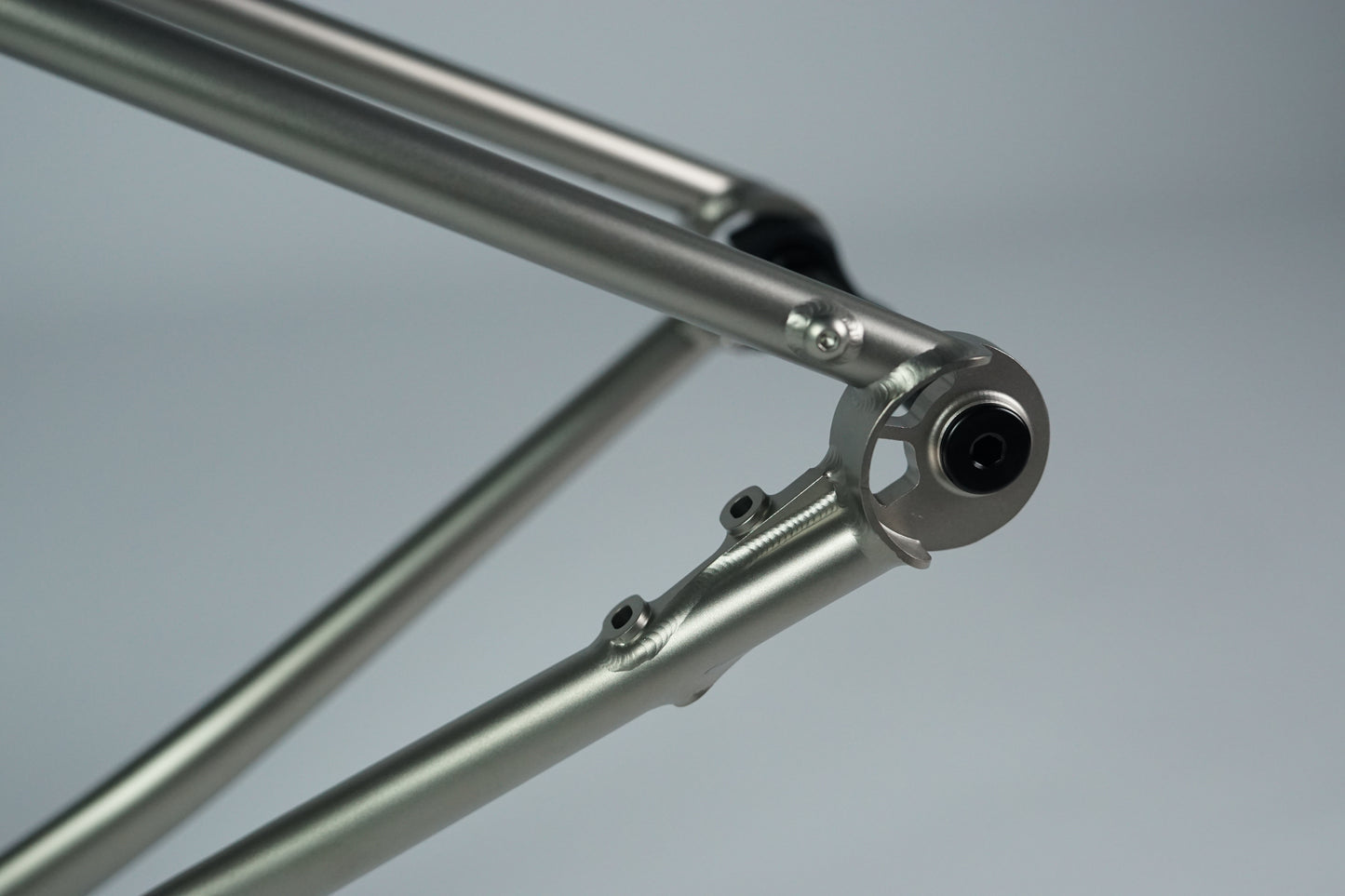

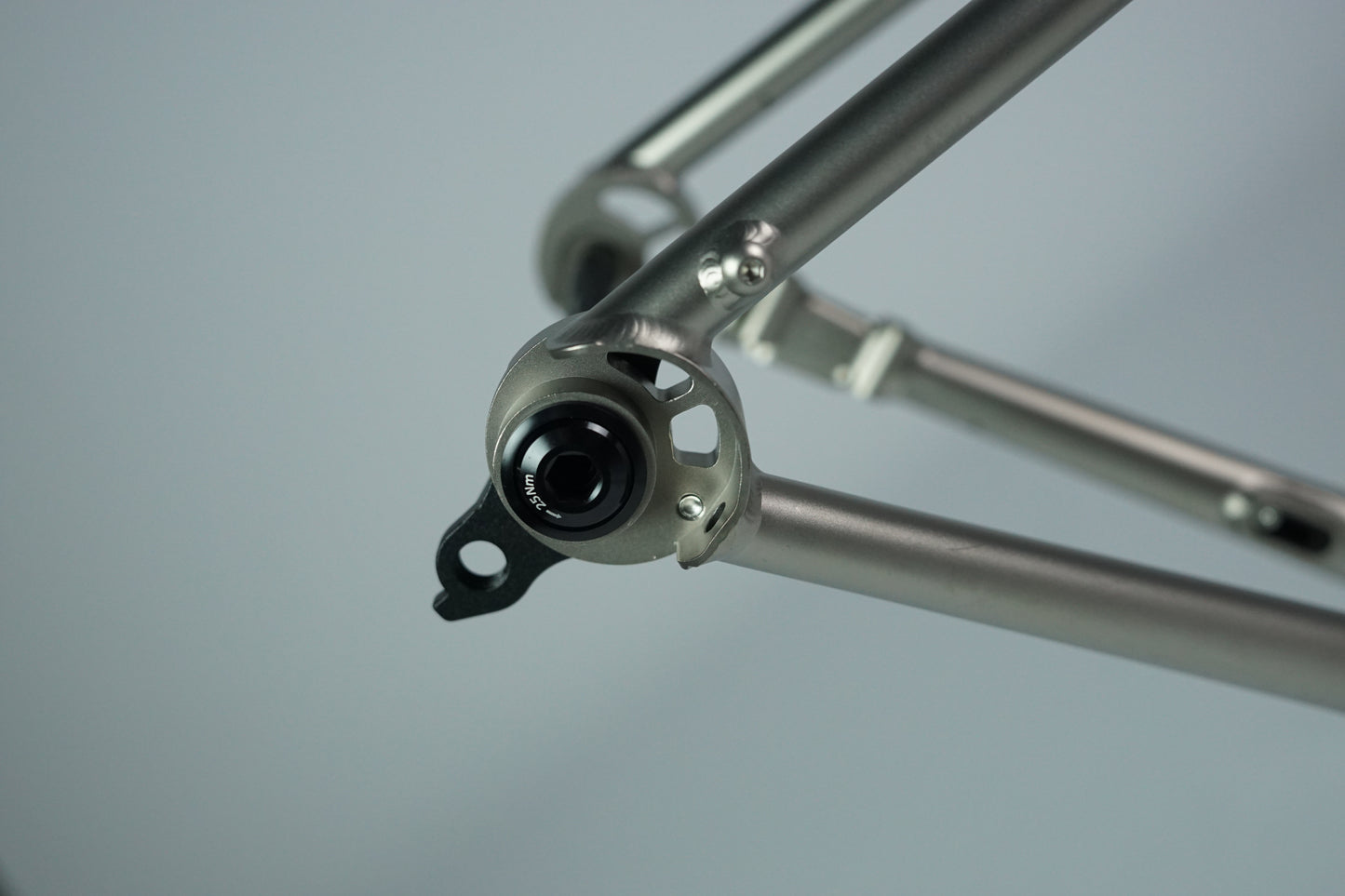

Luma UDH Dropout SRAM universal derailleur hanger

UDH Hanger

All Luma models come standard with UDH hangers. That means a replacement can be sourced anywhere, anytime with no proprietary parts. It also means compatibility with every derailleur option out there.

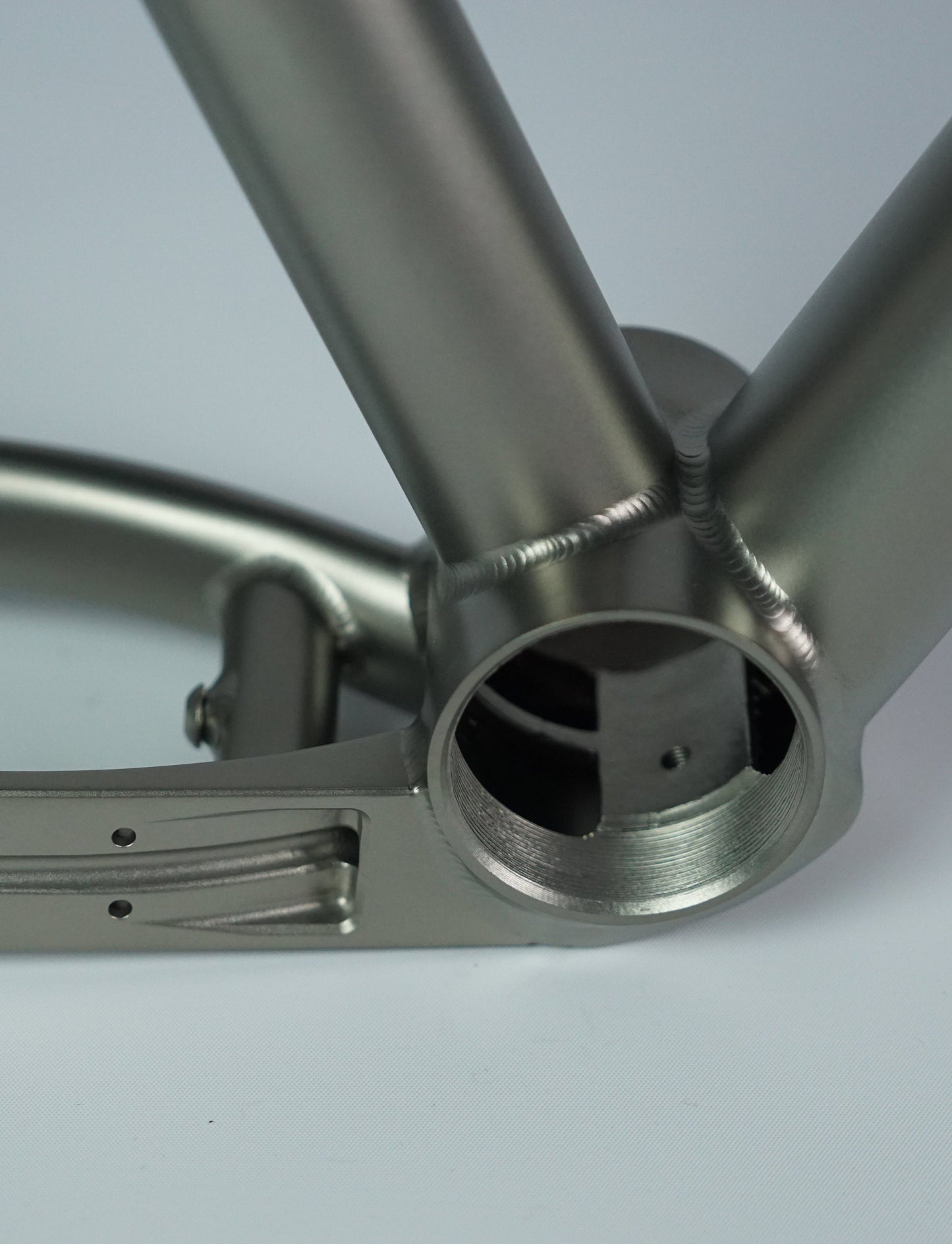

Luma gravel Bottom Bracket BB titanium bike ti bike

BB Cable Cradle

Our T47 bottom bracket shell is designed for ultimate simplicity and ease of use. An access plate underneath leads to a cable cradle that allows each housing to have it's own path. The cable cradle also separate the cable from bottom bracket, allowing for easier maintenance of both components.

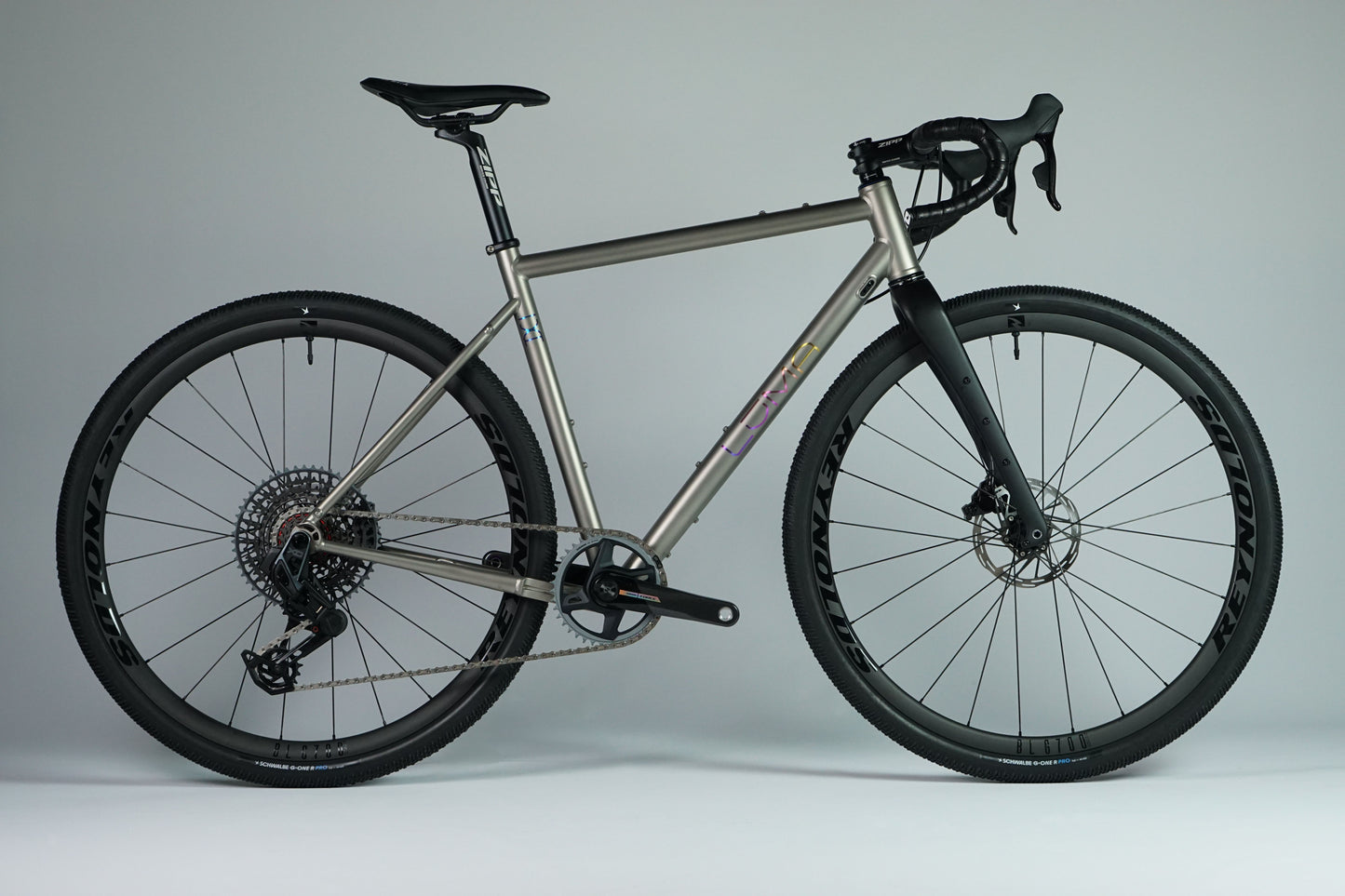

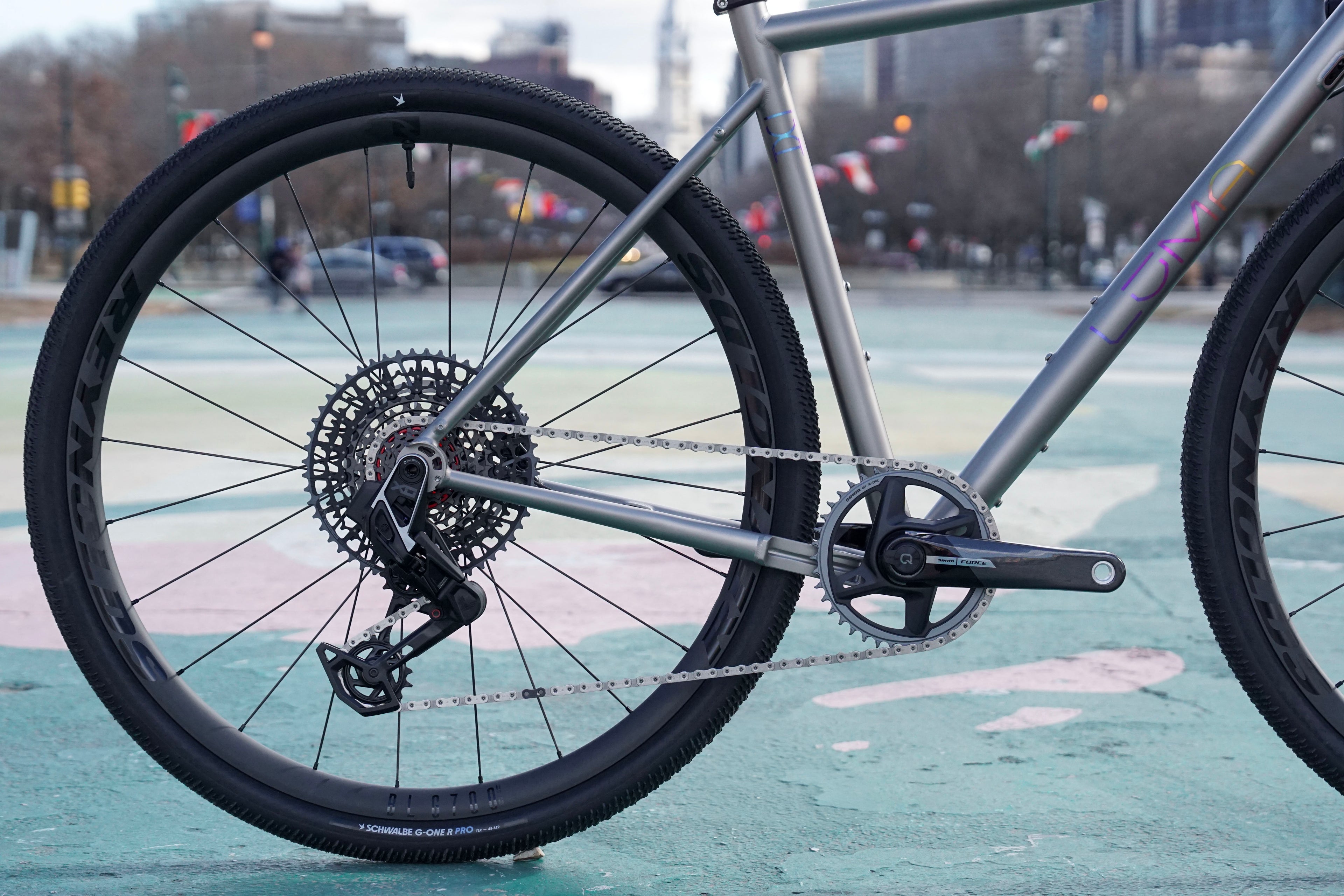

Luma Cycles Meridian Titanium ravel Bike SRAM Force AXS Mullet X0 Transmission

Build Options

The Meridian is available as a frameset or a complete. Use the build options to create your dream gravel bike or keep it stock with the standard spec.

Build Specs

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Adventure

Axles: LV2 F12x100 / LV2 R12x142

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: Shimano GRX R820 12spd

Brake: Shimano GRX RX-820

Rotor: Shimano RT-MT900S 160/160

Rear Derailleur: Shimano GRX RX822-SGS

Crankset: Shimano GRX RX820 40t

Chain: Shimano CN-M7100 HG

Cassette: Shimano CS-M8100 10-51t

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 31.6

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R5

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: Shimano GRX RX-820 2X

Brake: Shimano GRX RX-820

Rotor: Shimano RT-MT900S 160/160

Rear Derailleur: Shimano GRX RX-820

Front Derailleur: Shimano GRX FD-RX820

Crankset: Shimano GRX FC-RX820-2 48-31t

Chain: Shimano CN-M8100 HG

Cassette: Shimano CS-HG710-12 11-36T

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 31.6

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R5

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: SRAM Rival AXS

Brake: SRAM Rival AXS

Rotor: SRAM Paceline X CL 160

Rear Derailleur: SRAM GX Eagle AXS Transmission

Crankset: SRAM Rival Wide 1x 40t

Chain: SRAM GX Eagle Transmission Flattop

Cassette: SRAM XS-1275 10-52t

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 27.2

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: SRAM Rival AXS

Brake: SRAM Rival AXS

Rotor: SRAM Paceline X CL 160

Rear Derailleur: SRAM Rival AXS

Crankset: SRAM Rival Wide 2x 43/30t

Chain: SRAM Rival Flattop

Cassette: SRAM XG-1250 10-36t

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 27.2

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R5

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: SRAM Force AXS

Brake: SRAM Force AXS

Rotor: SRAM Paceline X CL 160

Rear Derailleur: SRAM X0 Eagle AXS Transmission

Crankset: SRAM Force Wide 1x 40t

Chain: SRAM X0 Eagle Transmission Flattop

Cassette: SRAM XG-1295 10-52t

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Handlebar: Zipp Service Course 70 XPLR

Stem: Zipp Service Course

Seatpost: Zipp Service Course 27.2

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R5

Frame: LūMA Meridian Grade 9 3Al/2.5V Ti Taperwall Butted

Fork: LūMA Cycles Carbon Gravel

Headset: Cane Creek 40

Axles: LV2 F12x100 / LV2 R12x142

Bottom Bracket: Cane Creek Hellbender 70 T47

Shifter: SRAM Red XPLR AXS

Brake: SRAM Red XPLR AXS

Rotor: SRAM Paceline X CL 160

Rear Derailleur: SRAM Red XPLR AXS

Crankset: SRAM Red XPLR 1x 40t w/ Power Meter

Chain: SRAM Red Flattop

Cassette: SRAM Red XG-1391 GX 10-46

Wheelset: Boyd GVL

Tire: Schwalbe G-One R 700x45c

Stem: Zipp Service Course SL

Handlebar: Zipp SL 70 XPLR

Seatpost: Zipp Service Course SL

Bar Tape: Fizik Vento Microtex Tacky

Saddle: Fizik Terra Argo R5

NaN -Infinity

Frame Info

luma meridian frameset geometry chart

Frame: LūMA Cycles Grade 9 3Al/2.5V Titanium Double-Butted

Fork: LūMA Cycles Carbon Adventure

Headset: Upper ZS44/28.6 Lower EC44/40

Seat Tube Diameter: 31.6mm

Bottom Bracket: T47-68

Hanger: UDH

Axle: 12x142 Thru-axle

Front Derailleur Mount: 34.9mm band-clamp

Brake Mount: Flat Mount 160mm

Max Tire: 700x50c

Max Chainring: 1x: 42T    2x: 50/34T

Mounts: 3 bottles, top tube, rack, fenders, fork legs

Max Rider Weight: 250lbs

Country of Manufacture: China
