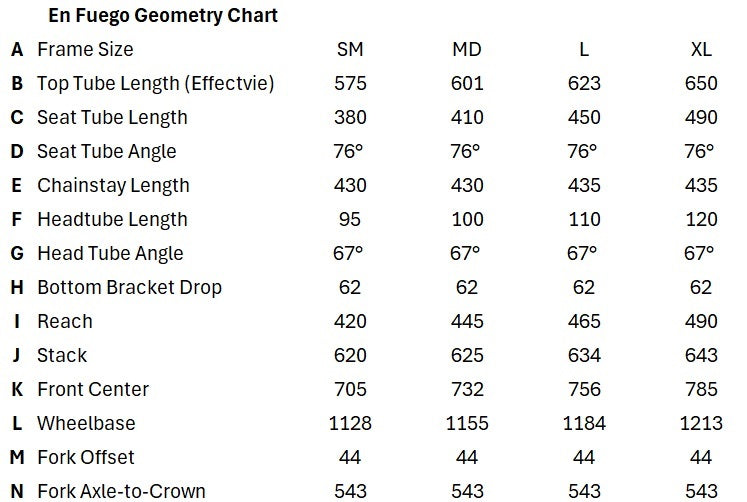

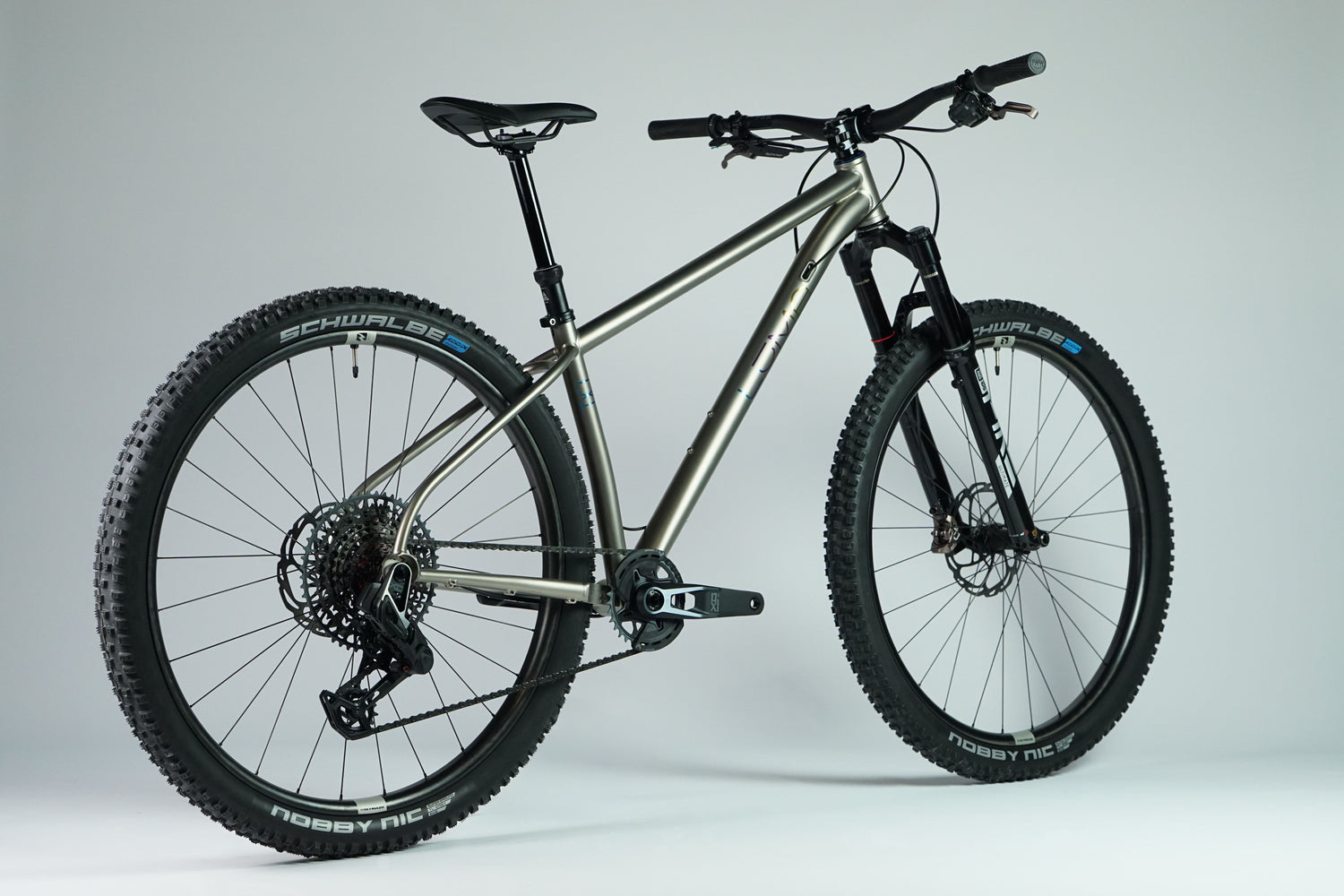

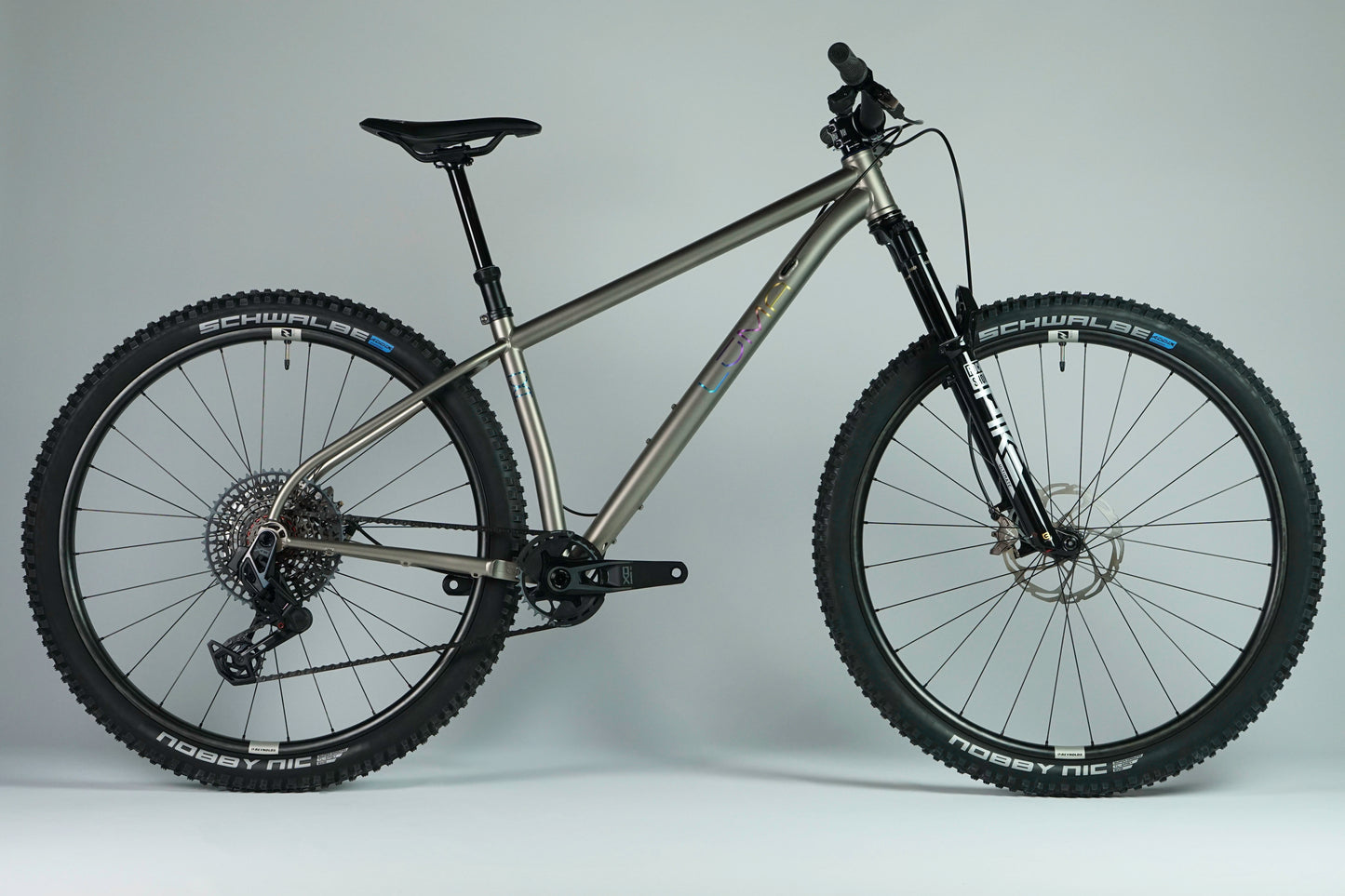

Trail Focused Geometry
En Fuego was engineered with geometry to take on whatever trails you want to explore, and feel alive while doing it. Whether it's big days in the backcountry, or hammering laps on your local loop, En Fuego will keep the pace. Snappy in the trails but still stable with the weight a full bikepacking setup, En Fuego is ready to attack it all.

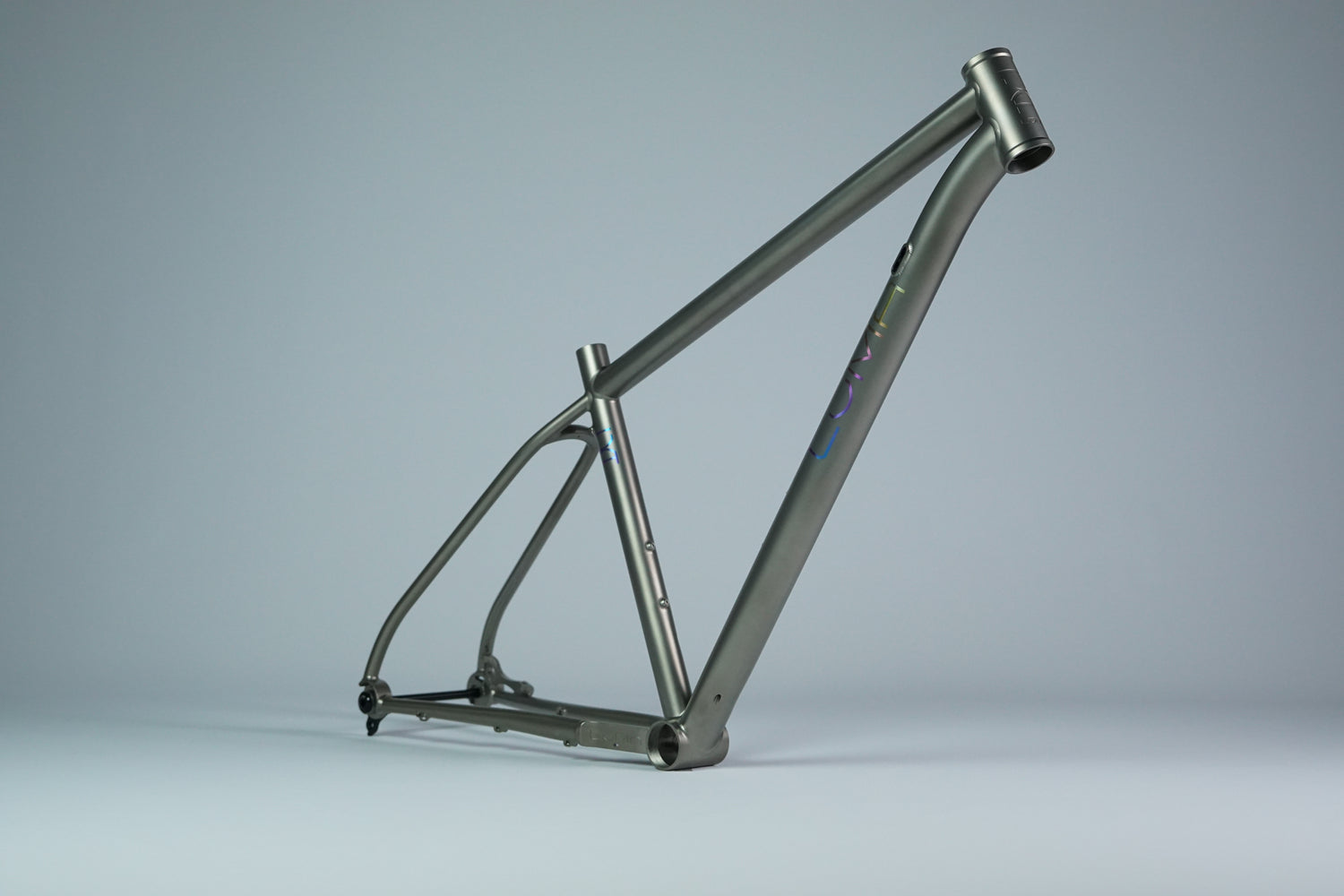

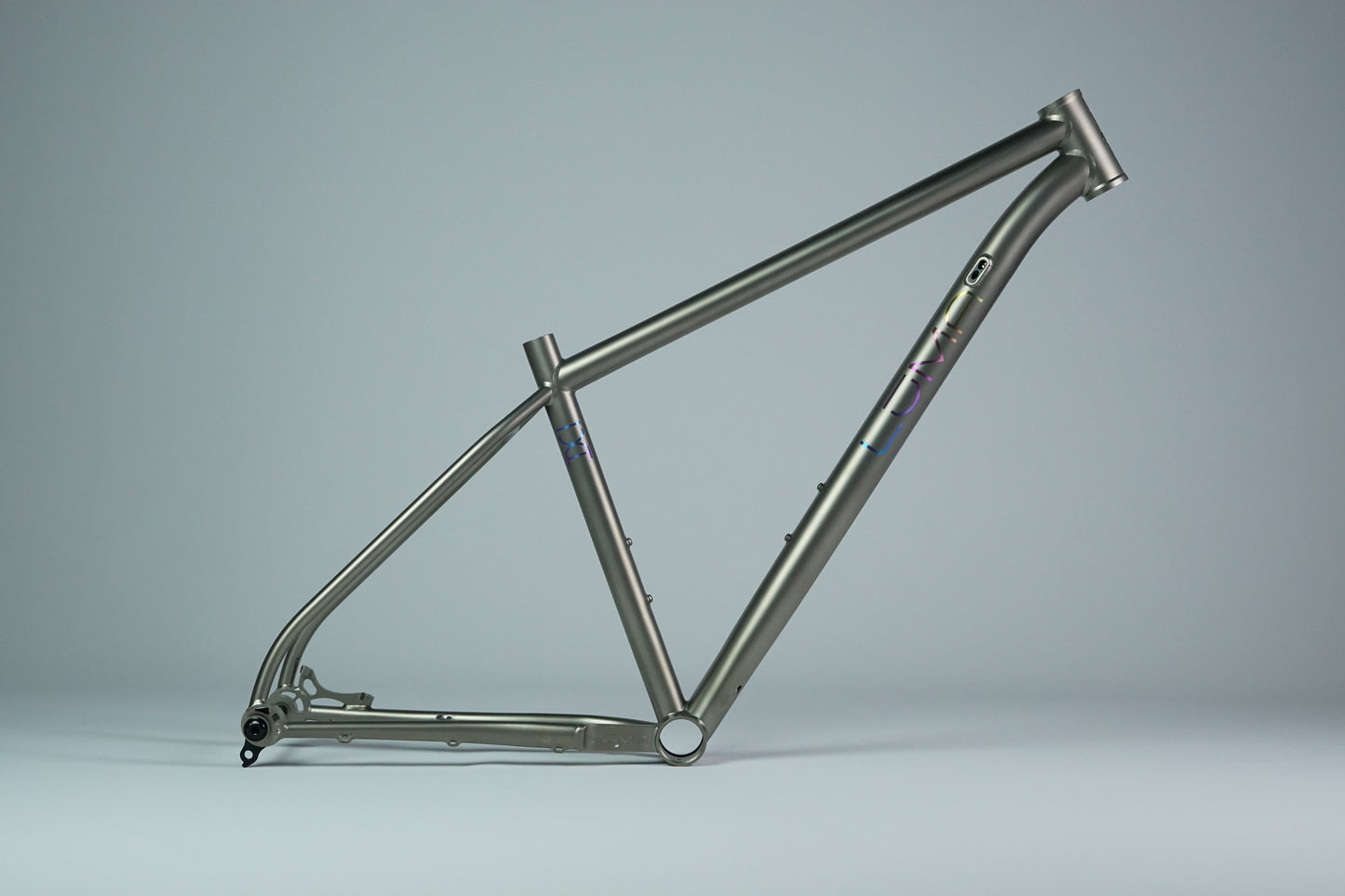

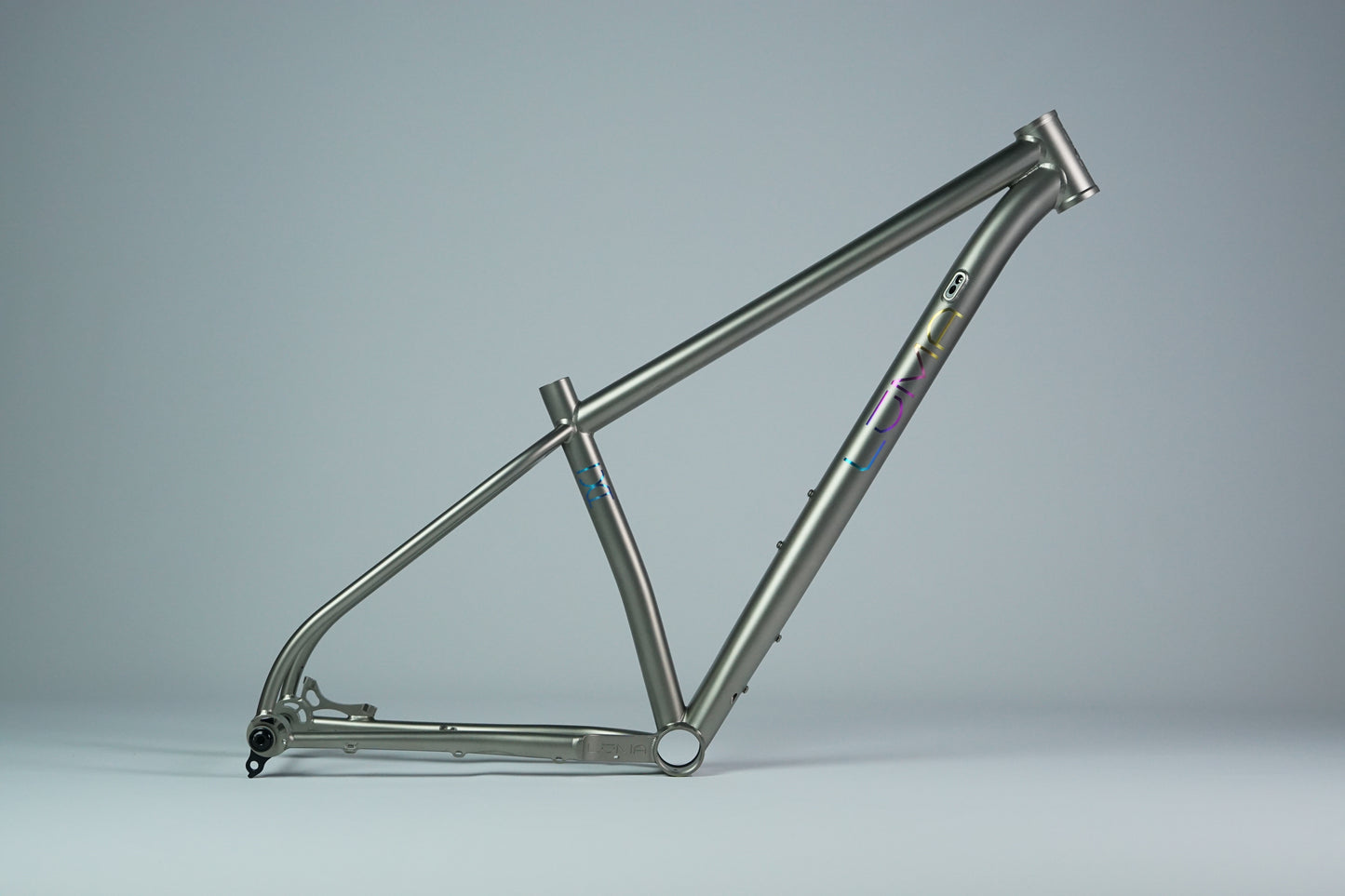

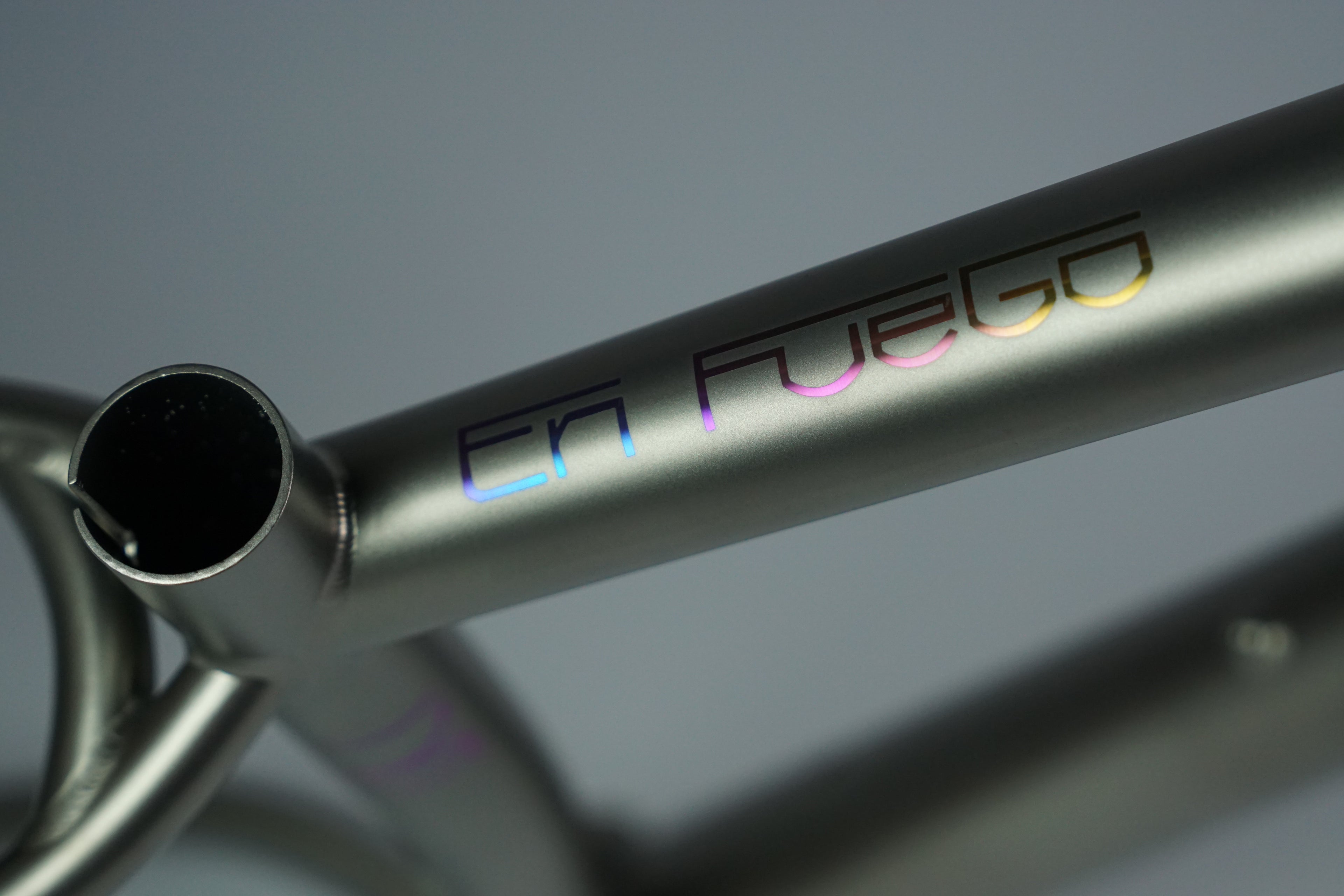

Titanium Construction

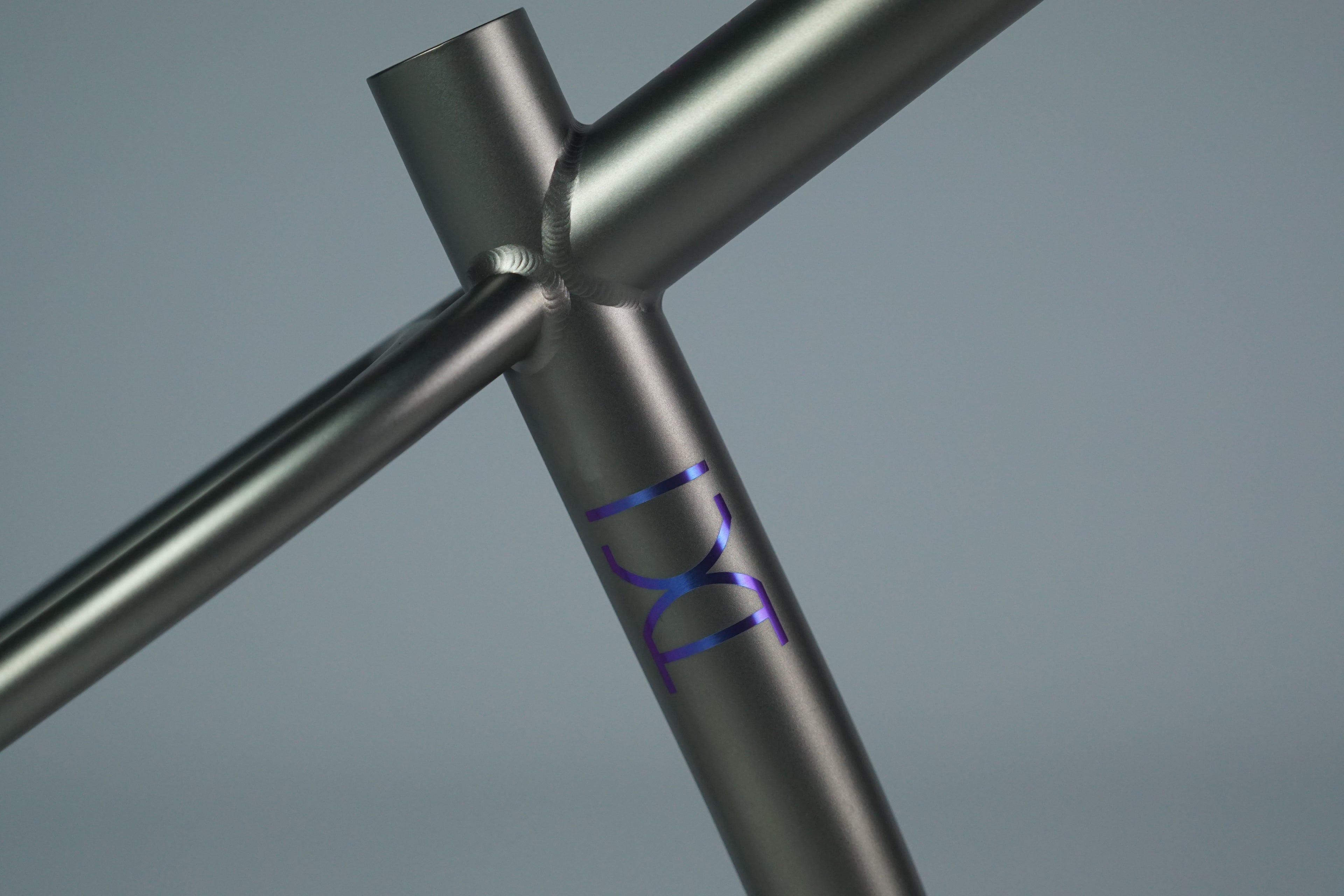

En Fuego is made of Double Butted Grade 9 3Al/2.5V Titanium. All welds are done with a double pass to match the tubeset in strength and longevity.

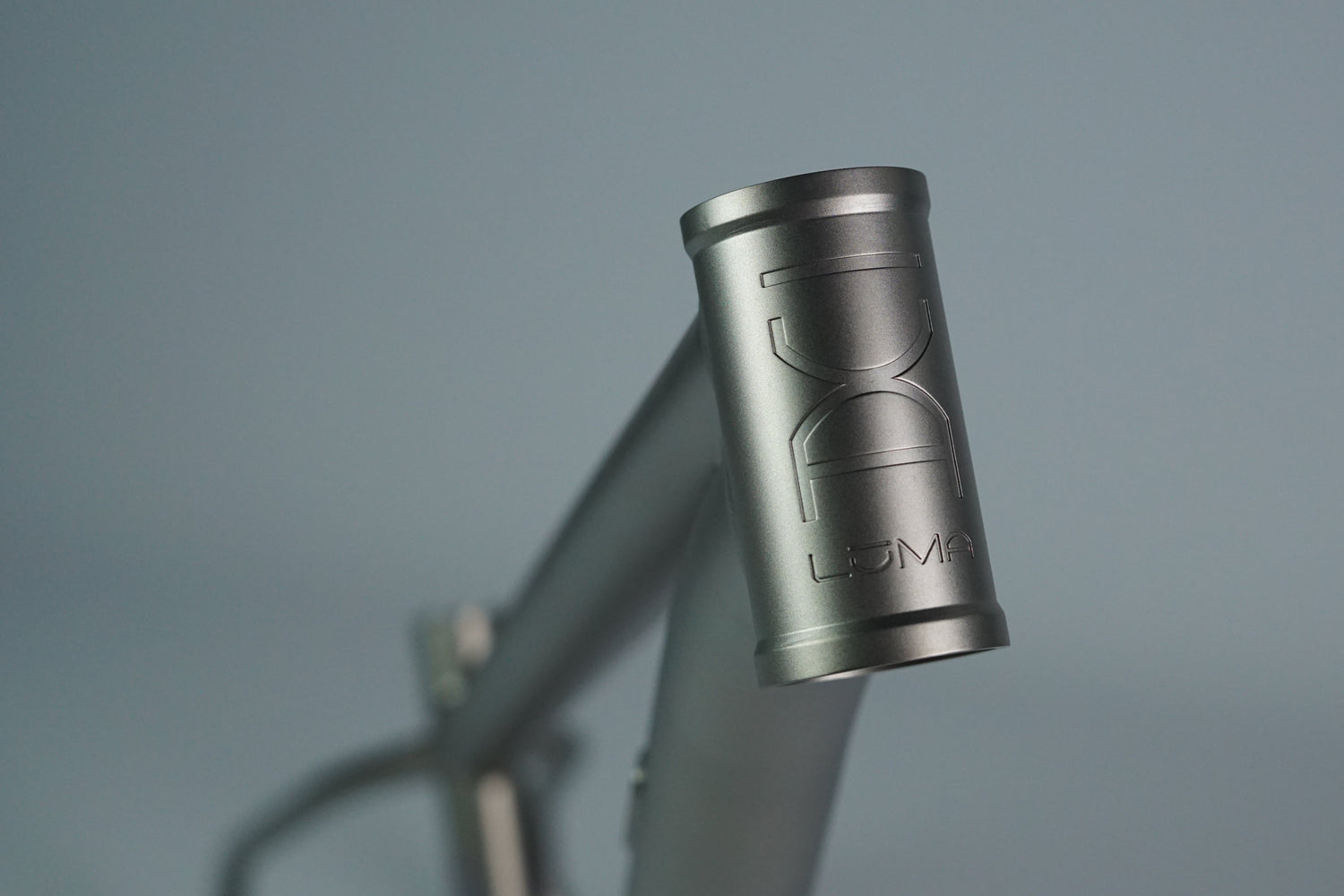

Internal Cable Routing
Our frames are designed to use internal cable routing for mechanical drivetrains, with the option to go fully integrated on electronic drivetrains builds. Cable ports on the downtube that run through the frame allow smooth operation of mechanical shifting. Porting inside the headtube and downtube provide space to allow brake hoses on bikes built using drivetrains without cables.

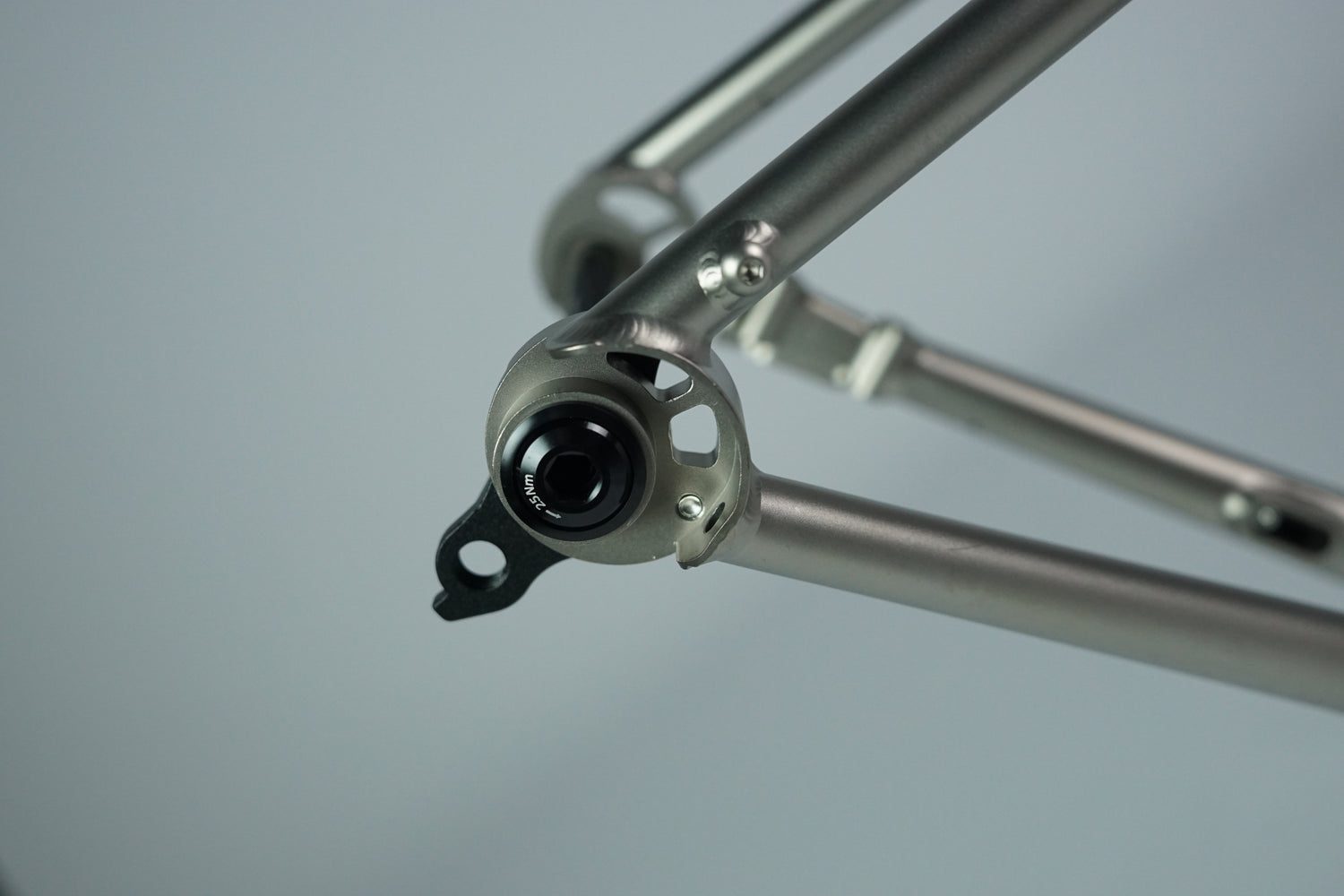

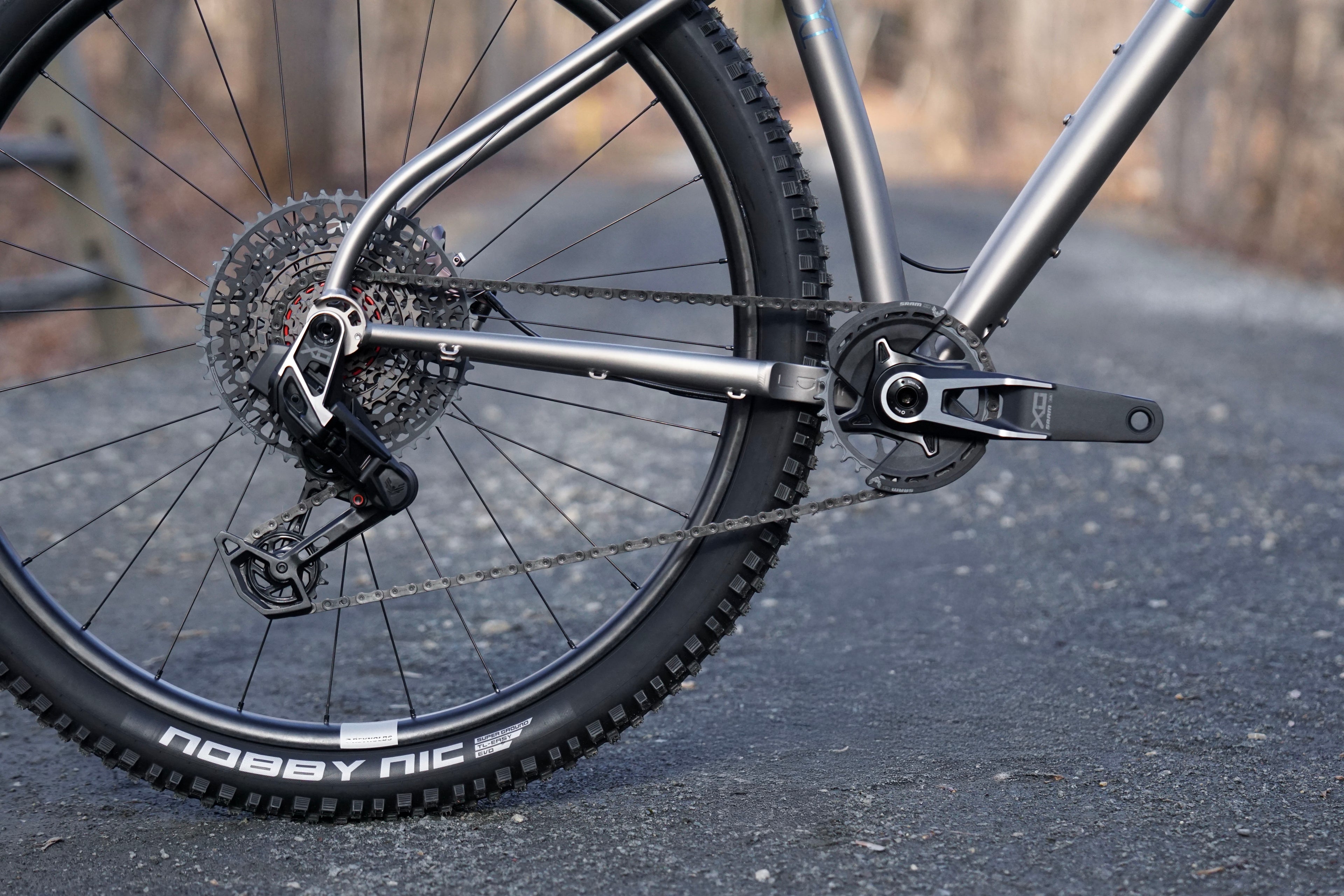

UDH Hanger
All Luma models come standard with UDH hangers. That means a replacement can be sourced anywhere, anytime with no proprietary parts. It also means compatibility with every derailleur option out there.

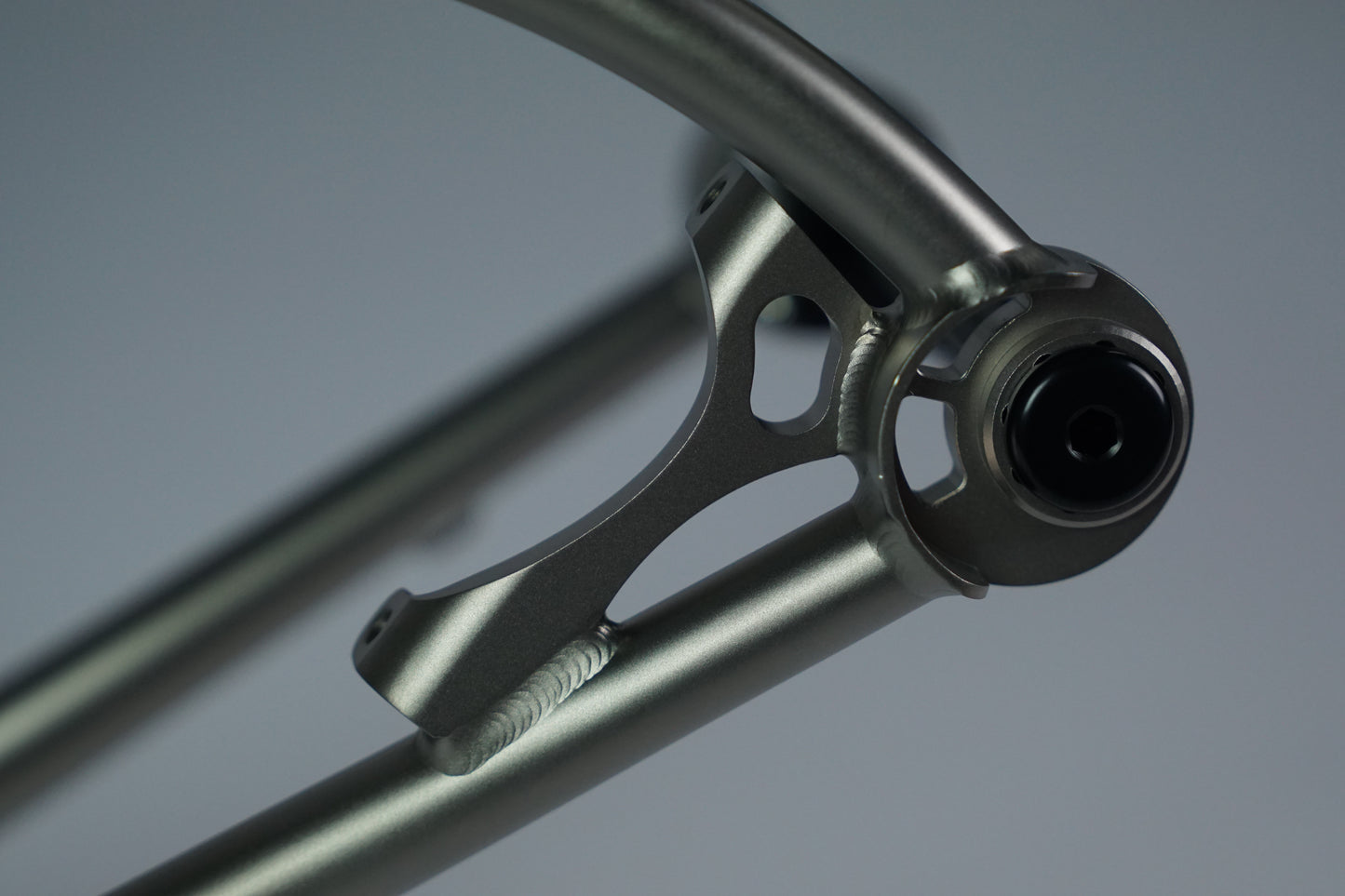

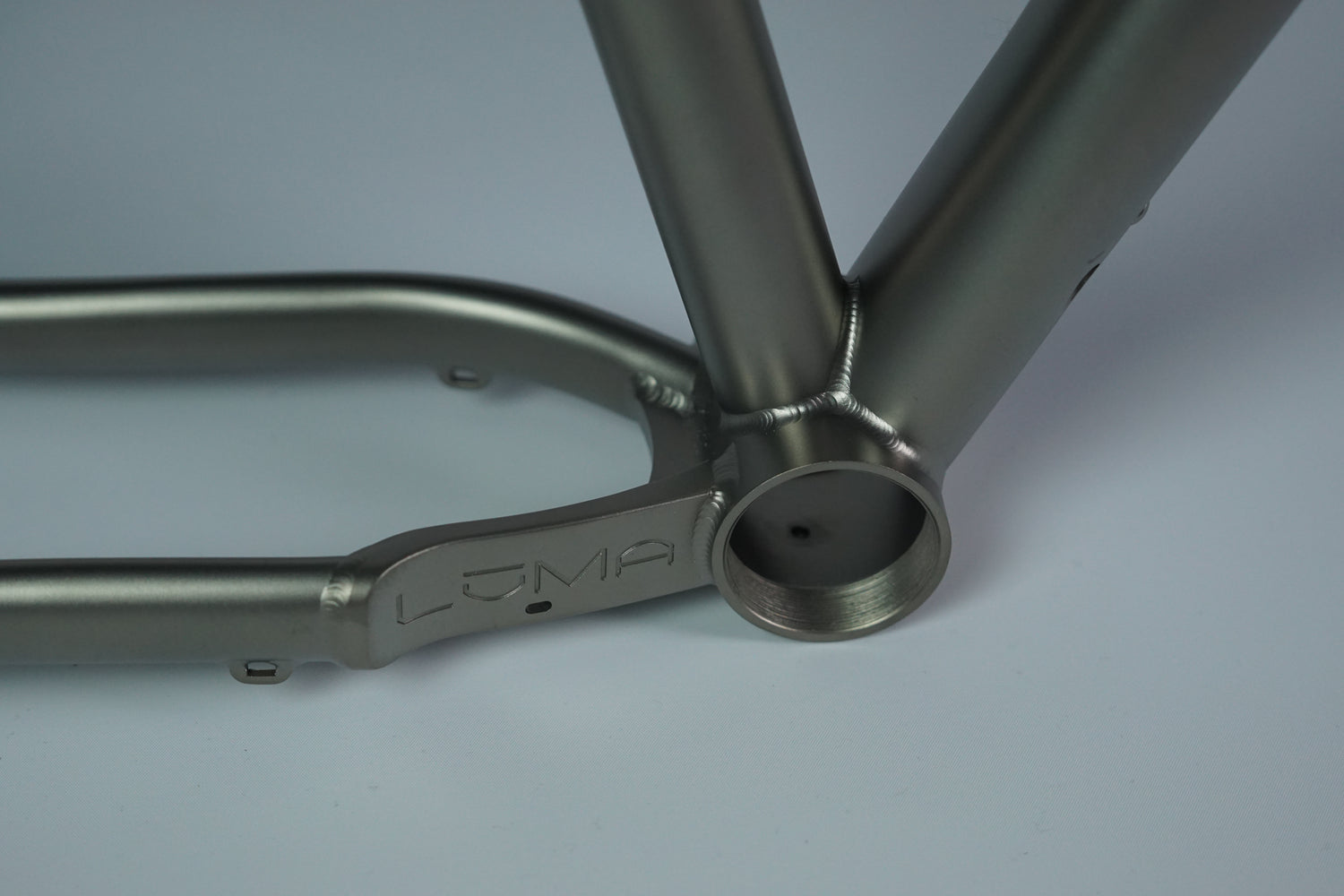

BB Cable Cradle
Our bottom bracket is designed for ultimate simplicity and ease of use. An access plate underneath leads to a cable cradle that allows each housing to have it's own path. The cable cradle also separate the cable from bottom bracket, allowing for easier maintenance of both components.
Frame Specs
Frame: LūMA Cycles Grade 9 3Al/2.5V Titanium Double-Butted
Fork: 130mm Suspension, 44mm offset
Country of Manufacture: China
Headset: Upper ZS44/28.6 Lower EC44/40
Seat Tube Diameter: 31.6mm
Bottom Bracket: T47-73
Hanger: UDH
Axle: 12x148 Boost Thru-axle
Brake Mount: Post Mount 160mm
Max Tire: 29x2.6"
Max Chainring: 1x: 34T
Mounts: 2 bottles
